Tungsten carbide rod

K10/K20/K30 Cemented Carbide Pipe/Tube,Tungsten Carbide Rod with Blind Hole

Place of Origin： China
Brand Name： Zhenfang
Certification： ISO9001:2015
Grade： K10,K20,K30
Minimum Order Quantity:100 pcs
Price:USD 55-65/kg
Delivery Time:7-15 days
Payment Terms:30% after confirming order the balance before shiping
Supply Ability:100000 pcs/month

K10/K20/K30 Cemented Carbide Pipe/Tube,Tungsten Carbide Rod with Blind Hole

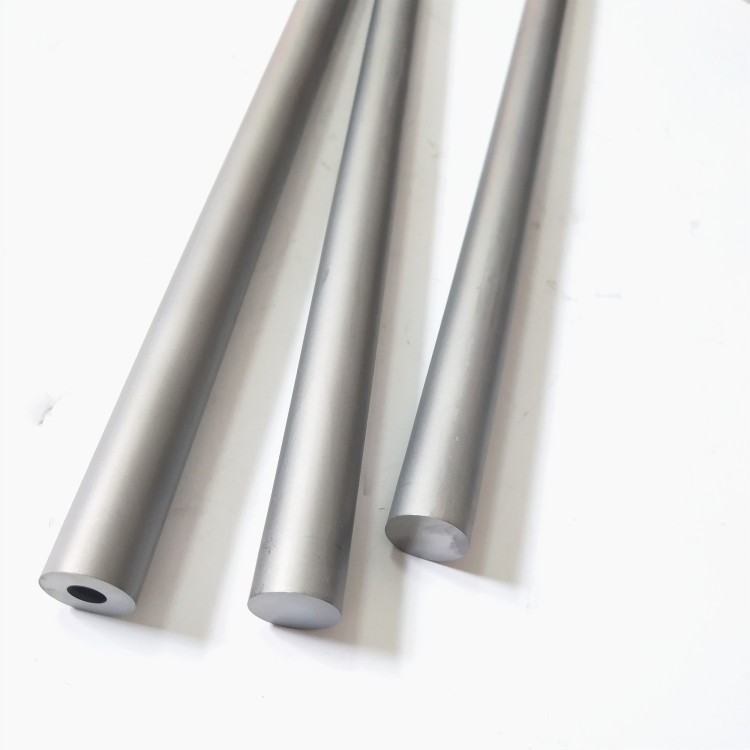

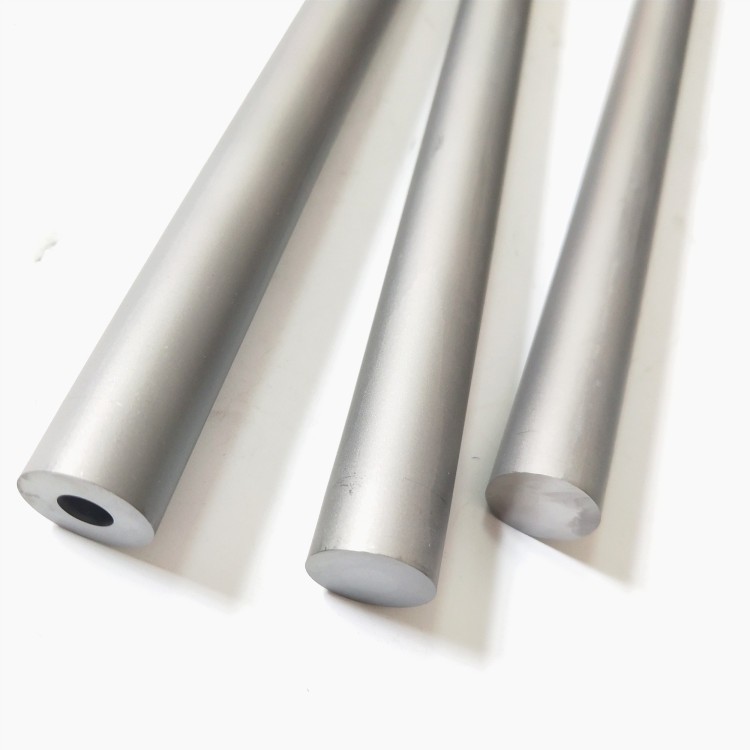

Description of tungsten carbide tube carbide rod with blind hole

Tungsten carbide tube has many different grades with different application for clients to select. The chemical composition of tungsten carbide tube with double holes is tungsten carbide + Cobalt and other carbides. The tungsten carbide tube with double holes is usually made into end mills for cutting or made into drill bits for mining.

Application of tungsten tube

Tungsten carbide tube is widely used for processing cast iron, non-ferrous metal, steel, heat resistance alloy.Tungsten carbide tube has high hardness and wear resistance and long life working time. We recommeded use tungsten carbide tube for drill bits and end mills.

Grade of tungsten carbide tube

ISO Code	Grain Size	Density (g/cm3)	Hardness (HRA)	T.R.S(Mpa)
K05-K10	0.4	14.8	94	3800
K20-K40	0.8	14.5	91.5	3900
K05-K10	0.6	14.3	92.3	3800
K20-K40	0.4	14.1	92.5	4200

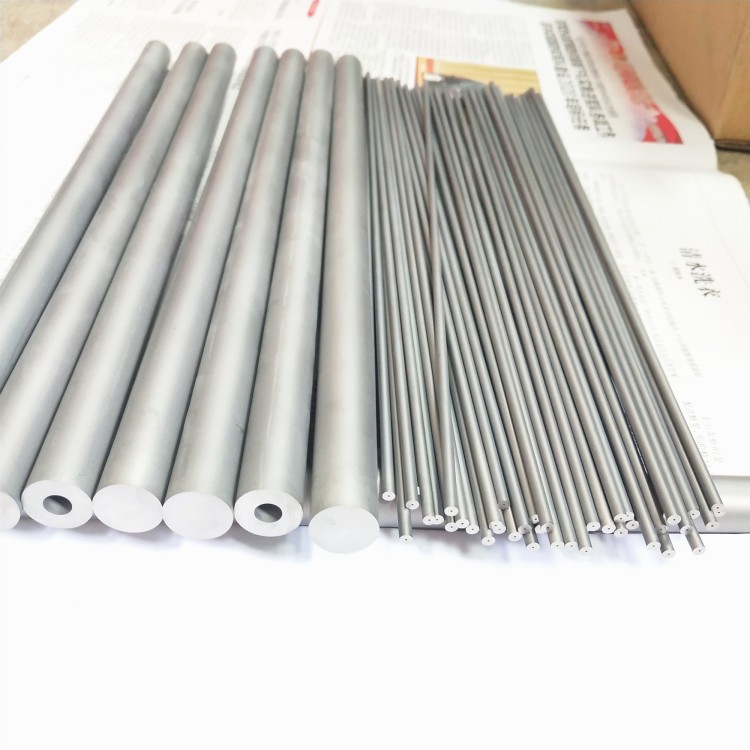

Cemented carbide rods blanks with one central coolant hole


Type	D(mm)	Tolerance	d(mm)	Tolerance	Deviation of holes position≤(mm)	L(mm)	Tolerance
BΦ4.0×Φ1.0×330	4.0	+0.2/+0.6	1.0	±0.15	0.2	330	0/+5
BΦ5.0×Φ1.0×330	5.0	+0.2/+0.6	1.0	±0.15	0.2	330	0/+5
BΦ5.0×Φ1.5×330	5.0	+0.2/+0.6	1.5	±0.15	0.2	330	0/+5
BΦ6.0×Φ1.0×330	6.0	+0.2/+0.6	1.0	±0.15	0.2	330	0/+5
BΦ6.0×Φ1.5×330	6.0	+0.2/+0.6	1.5	±0.15	0.2	330	0/+5
BΦ8.0×Φ1.0×330	8.0	+0.2/+0.6	1.0	±0.15	0.25	330	0/+5
BΦ8.0×Φ1.5×330	8.0	+0.2/+0.6	1.5	±0.15	0.25	330	0/+5
BΦ9.0×Φ1.0×330	9.0	+0.3/+0.7	1.0	±0.15	0.25	330	0/+5
BΦ10.0×Φ1.0×330	10.0	+0.3/+0.7	1.0	±0.15	0.25	330	0/+5
BΦ10.0×Φ2.0×330	10.0	+0.3/+0.7	2.0	±0.2	0.25	330	0/+5
BΦ11.0×Φ1.0×330	11.0	+0.3/+0.7	1.0	±0.15	0.25	330	0/+5
BΦ12.0×Φ1.0×330	12.0	+0.3/+0.7	1.0	±0.15	0.25	330	0/+5
BΦ12.0×Φ2.0×330	12.0	+0.3/+0.7	2.0	±0.2	0.25	330	0/+5
BΦ14.0×Φ2.0×330	14.0	+0.3/+0.7	2.0	±0.2	0.25	330	0/+5
BΦ16.0×Φ2.0×330	16.0	+0.4/+0.8	2.0	±0.2	0.25	330	0/+5
BΦ16.0×Φ3.0×330	16.0	+0.4/+0.8	3.0	±0.25	0.25	330	0/+5
BΦ18.0×Φ3.0×330	18.0	+0.4/+0.8	3.0	±0.25	0.3	330	0/+5
BΦ20.0×Φ3.0×330	20.0	+0.4/+0.8	3.0	±0.25	0.3	330	0/+5

20.0≤Dia ≤40.0 are available on request

Key Features:

1.High melting point (3410°C)
2. low thermal expansion
3.High resistance
4. Vapor pressure is low
5. Good thermal conductivity
6. High density

Application:
1.Suitable for the production of ion implantation parts
2.production of electric light source parts and electric vacuum parts and elements and refractory parts
3.used as heating elements and refractory parts in high temperature furnaces
4.Used as electrode for rare earth metal industry

Zhuzhou Zhenfang Yaguang Tungsten-Molybdenum Co.,LTD is a professional manufacture in tungsten carbide field. We have engaged in this field for over ten years. We have rich experience on tungsten carbide studying and manufacture. We pursuit providing efficient solution and high quality products for clients. We specialize in tungsten carbide rod, carbide plate&strips, carbide dies, carbide roller, carbide wear parts for petrochemical industry, carbide cutting tools.Tungsten carbide rod and customized wear parts is our advantage.
