Tungsten carbide rod

10% cobalt polished solid tungsten alloy carbide rod for tools or endmill

10% cobalt polished solid tungsten alloy carbide rod for tools or endmill

Place of Origin： China
Brand Name： Zhenfang
Certification： ISO9001:2015
Grade： K10, K20,K30,K40 etc
Minimum Order Quantity:100 pcs
Price:USD 45-58/kg
Delivery Time:3-5 days
Payment Terms:30% after confirming order the balance before shiping
Supply Ability:100000 pcs/month

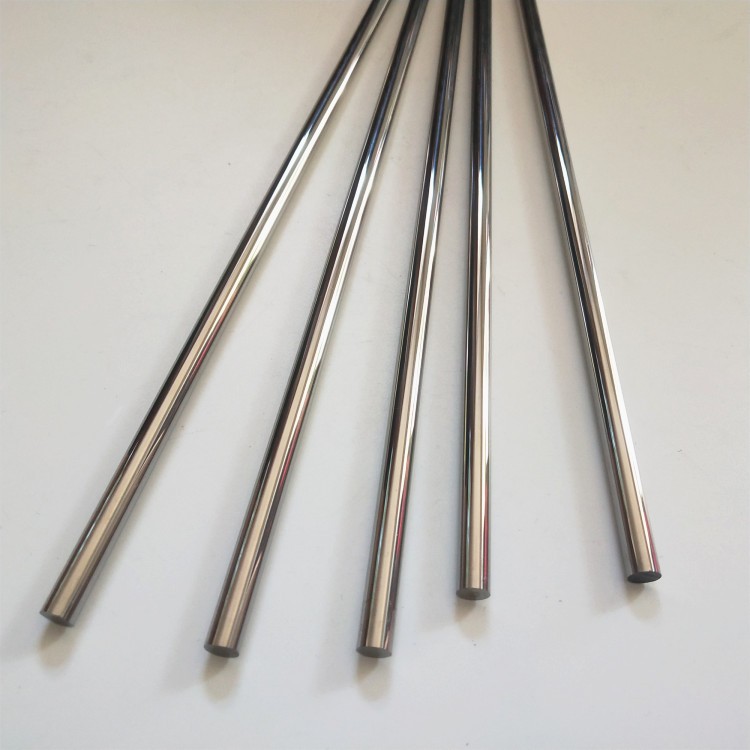

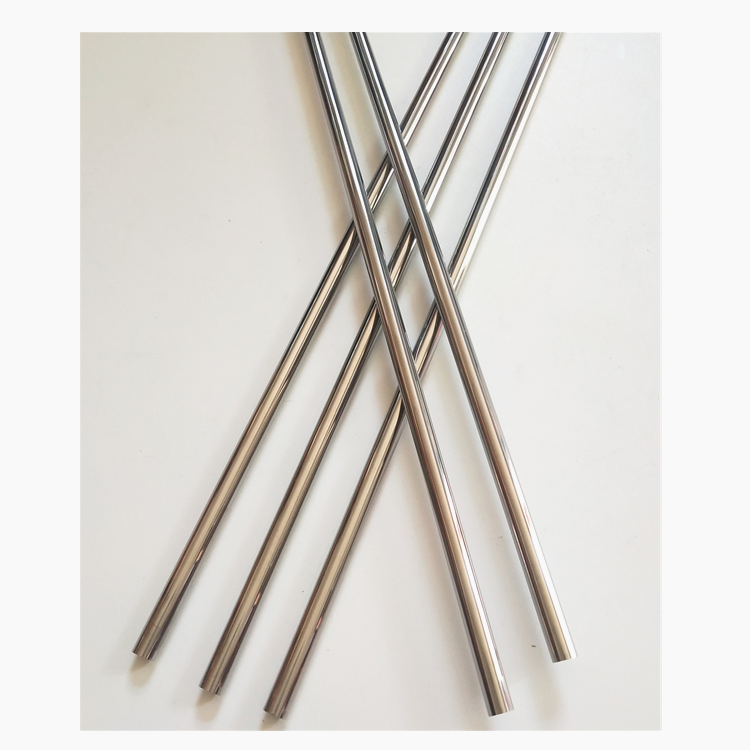

10% cobalt polished solid tungsten alloy carbide rod for tools or endmill

We manufactured and stocked a large range of tungsten carbide rod with or without hole for you.
Our Diameter from 0.3mm to 40mm, the inner hole can be 0.1mm min
length in 310mm, 330mm or 340mm, or any length.

For Advantage of our tungsten carbide rod

1.Using over 99.95% high purity tungsten carbide powder, it has a better strength and hardness combined with a longer service life than the normal one.
2. Using ultrafine grain size of tungsten carbide powder to produce,Hardness can reach to HRA93.6, Bending strength can reach to 4000N/mm²
3.Tolerance can reach to ±0.001mm, straightness can reach to ±0.02mm

Grade: K10/K20/K30

Size: Customizable

Standard: GB

Certification: ISO9001

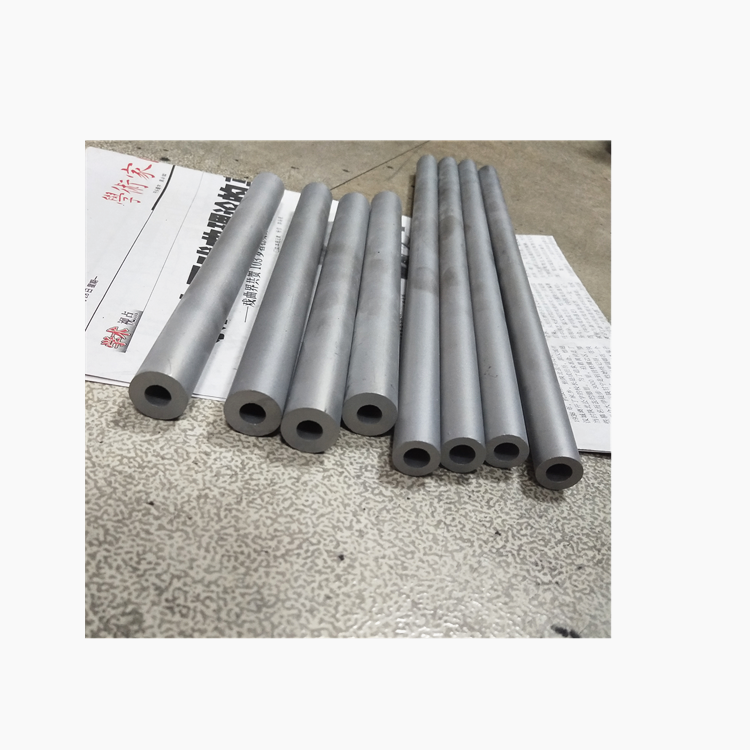

Product Name	Sintered Unground Solid Tungsten Carbide Rod
Material	100% Virgin Tungsten Carbide
Application	Metalworking/Woodworking tool
Chemical composition	WC/Co
Property	resistance to wear/high thermo/high feed/corrosion
Grain size	0.5um-1.0um
Powder compaction	Extrusion/Press
Sintering	HIP sintering

Application Are
As tungsten carbide have good material properties, it is widely used in varous industries:Paper, packaging, printing, non-ferrous metal processing industry,Mechanical, chemical, petroleum, metallurgy, electronic and natioanl defense industries.

Diameter(mm)	Length(mm)	Tolerance of D
1-3mm	330	h5/h6
4	330	h5/h6
5	330	h5/h6
6	330	h5/h6
7	330	h5/h6
8	330	h5/h6
9	330	h5/h6
9.5	330	h5/h6
10	330	h5/h6
11	330	h5/h6
12	330	h5/h6
13	330	h5/h6
14	330	h5/h6
15	330	h5/h6
16	330	h5/h6
17	330	h5/h6
18	330	h5/h6
19	330	h5/h6
20	330	h5/h6
.......	330	h5/h6
37	330	h5/h6

We are able to help you customized various diameter and length carbide rod. gound or unground both available. We generally have inventory size from Dia1mm to Dia20mm with Length 300mm/330mmSome grade information for reference

Grade	Density (g/cm3)	Hardness (HRA)	T.R.S (N/mm2)	Composition(%)	Grain Size (μm)	ISO
YL10.2	14.4-14.6	92.5-92.8	3800	10%Co+90%WC	0.6	K25-K35
YG8	14.65-14.85	89.5	2320	8%Co+92%WC	0.8-1.2	K30
YG6	14.85-15	90	2150	6%Co+94%WC	0.8-1.2	K20
YG12X	14.3-14.5	92	2500	12%Co+88%WC	0.6-0.8
YG10X	14.3-14.7	90	2200	10%Co+90%WC	0.6-0.8	K35
YG15	13.9-14.2	87	2100	15%Co+85%WC	0.8-1.2

Other grade and dimension are also available for choosing based your specific application. please contact us at any timeProduction Process:
tungsten carbide rods process, to ensure high quality, we commit our customers that:
1. All materials are tested in terms of purity ,density, hardness and T.R.S before use.
2. Every piece of product is inspected before shipment

We Guarantee:
produced with advanced equipments and process.
high quality durable tungsten carbide rod blanks/cemented rods for milling for router bits made from 100% virgin raw material.
all products go through in-process and final inspection.
Quality Control System and strict inspection.
stable and continuous production ability.
free online technical service available.
OEM and ODM are accepted as well.
Our solid carbide rods are known for constantly providing maximum quality. You can rely on our products as a basis for
consistent performance capacity of your tools.
Undertake orders of non-standard sizes at customer's requests.

Other Carbide rod type:
For tungsten carbide rod,we can make various type
* solid carbide rod
* grinding carbide rod
* blank carbide rod
* carbide rod with chamfer
* carbide rod with single hole
* custom carbide rod
* carbide rod with tap

Our more products

1. Tungsten Carbide rod

2. Tungsten Carbide Sealed Ring

3. Tugnsten Carbide Wear parts

4. Tugnsten Carbide Dies

5. Tungsten Carbide Non-standard parts

6. Tungsten Carbide Circular Blade

Our Packing and shipment:

Packing	Outside Carton or plywood case with inner plastic box.
Shipping	UPS,TNT,EMS,Fedex,DHL,or by sea,as you reques

Our factory

Zhuzhou Zhenfang Yaguang Tungsten-Molybdenum Co.,LTD is a professional manufacture in tungsten carbide field. We have engaged in this field for over ten years. We have rich experience on tungsten carbide studying and manufacture.We pursuit providing efficient solution and high quality products for clients. We specialize in tungsten carbide rod, carbide plate&strips, carbide dies, carbide roller, carbide wear parts for petrochemical industry, carbide cutting tools.Tungsten carbide rod and customized wear parts is our advantage.
We always keep good relationship with our clients, enhancing communication

FAQ

Q1.What is your advantage ?

A:We have the best factory to produce for you,could guarantee the price is the most competitive. BEGUN carbide was recognized by market, it widely used for Chinese big project,such as subway,high speed rail,tunnel,mining and so on.At the same time,many big projects of the South africa,America,European and Austria also choose our carbide.

Q2. What is your terms of payment?

A: T/T 30% as deposit, and 70% balance before delivery. We'll show you the photos of the products and packages before you pay the balance.

Q3.Could you offer OEM and ODM service?

A:That is ok ,we have more than 5 years experience in OEM service.professional R&D department is ready to design products to fit your specifications,they can offer the professional advice and CAD drawings(3D) for you!

Q4. How about your delivery time?

A: Lead time as fast as 7-15 days!

Q5. What is the MOQ ?

A.No MOQ for our existing stock,for special size,MOQ is 5 KGS.

Q6. What is your sample policy?

A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost

Q7. Do you test all your goods before delivery?

A: Yes, we have 100% test before delivery.Our production is based on ISO9001,we have more than 10 years experience of QC team and strictly quality control system in our production process.

Q8. What about the package?

A.It can make as the you need and depend on the products shapes. Generally, we can provide iron drum, carton, wooden case, and bag packages.

Q9: How do you make our business long-term and good relationship?

A:1. We keep good quality and competitive price to ensure our customers benefit ;

2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.

Our Services

Customer Notice
To save your value time, please inform us of the following information:
1. Grade
2. Type/Dimension/Clear Drawing
3. Available tolerance
4. Order quantity
5. Blanks or finished products
6.If you have any special requirements of the products, pls send us in advance. We will satisfy you as much as we can.

Pls feel free to contact us you have any requirments, any inquiry is welcomed!
