Tungsten Carbide Composite Rods For Hardfacing

  • Place of Origin: China
  • Brand Name: Zhenfang
  • Certification: ISO9001:2015
  • Grade: YG6, YG6X, YG8, YG10 etc
  • Minimum Order Quantity:100 pcs
  • Price:USD 45-58/kg
  • Delivery Time:3-5 days
  • Payment Terms:30% after confirming order the balance before shiping
  • Supply Ability:100000 pcs/month

Tungsten Carbide Composite Rods For Hardfacing

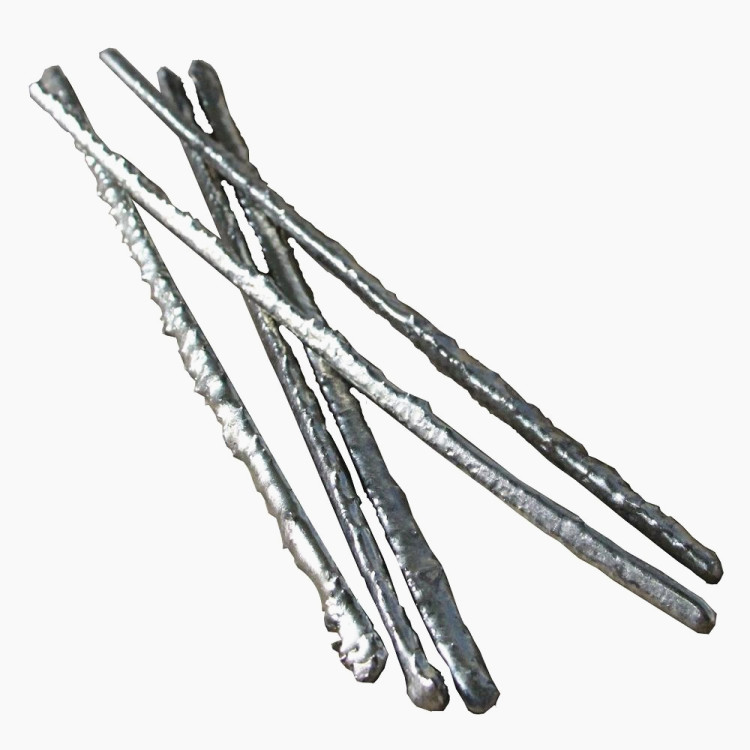

Tungsten carbide welding rod,YD welding rod,tungsten carbide composite rod it is made of by sintering tungsten carbide scrap and elastic matrix alloy,Outer layer of the special flux and coloring is marking scrap grade,the composition of sintering tungsten carbide scrap is mainly CO and WC,The hardness is HRA 89~91,tire body matal is Ni and copper alloy,strength can up to 690MPa, hardness HB≥160.


Applications

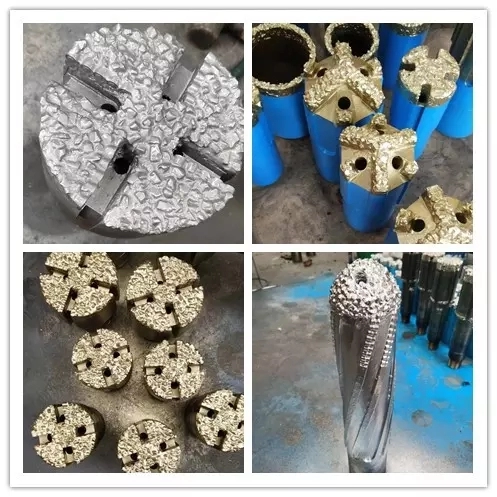

Composite rod welding has been acknowledged throughout oil drilling, mining and construction industry worldwide for its extra hardness and high wear resistant properties. The use is even spreading to more industries and gets greater uses. Composite rod welding has wear and cutting properties coupled by high-end weldability and low fuming, allowing the material to use in  stabilizers, reamers, drill pipe joints, construction drilling, hydraulic-cutter, pipe cutter blades, core bit, scraper, twist drill, milling and grinding shoes etc.


High wear resistance YD copper tungsten carbide composite welding rods (图1)



- Tungsten Cemented Carbide Grade:

 Grade   ISO  Code

   Chemical Component

(%)

  Grain size um

   Physial Mechanical Properties

(≥)

WC Co Others  Density g/cm3 Hardness (HRA) T.R.S   N/mm2
  D10UF  K05-K15  93  6 1  0.6 14.7093.0 2600
 D30UF K20-K30  89 10 1 0.6 14.5092.0 3800
 D30SF K20-K30  89 10 1 0.5 14.4092.5   4000
 D40SFK40 87121 0.4 14.3092.5 4200
 DB10X K20-K30   89  10  1   0.6  14.50 91.5   3800
 DP12XK30-K40  87  12  1   0.6   14.15  91.0   3300
 DP13XK40  86  13  1   0.8   14.10  90.5   4400
  YG6 K05-K10  93    6  0  1.2  14.95  91.0   2600
 YG6X K10   93    6  0   1.0   14.95 92.0  2500
 YG8K20-K30 92  80  1.2  14.70 90.0   2800
 YG10XK30-K40  89  10 1  0.8   14.50  91.0   3500
 YG15K40  85  15 0 1.2 14.0087.5  4500
 YG25 --  75  25 0 1.2  13.15 82.5  4800

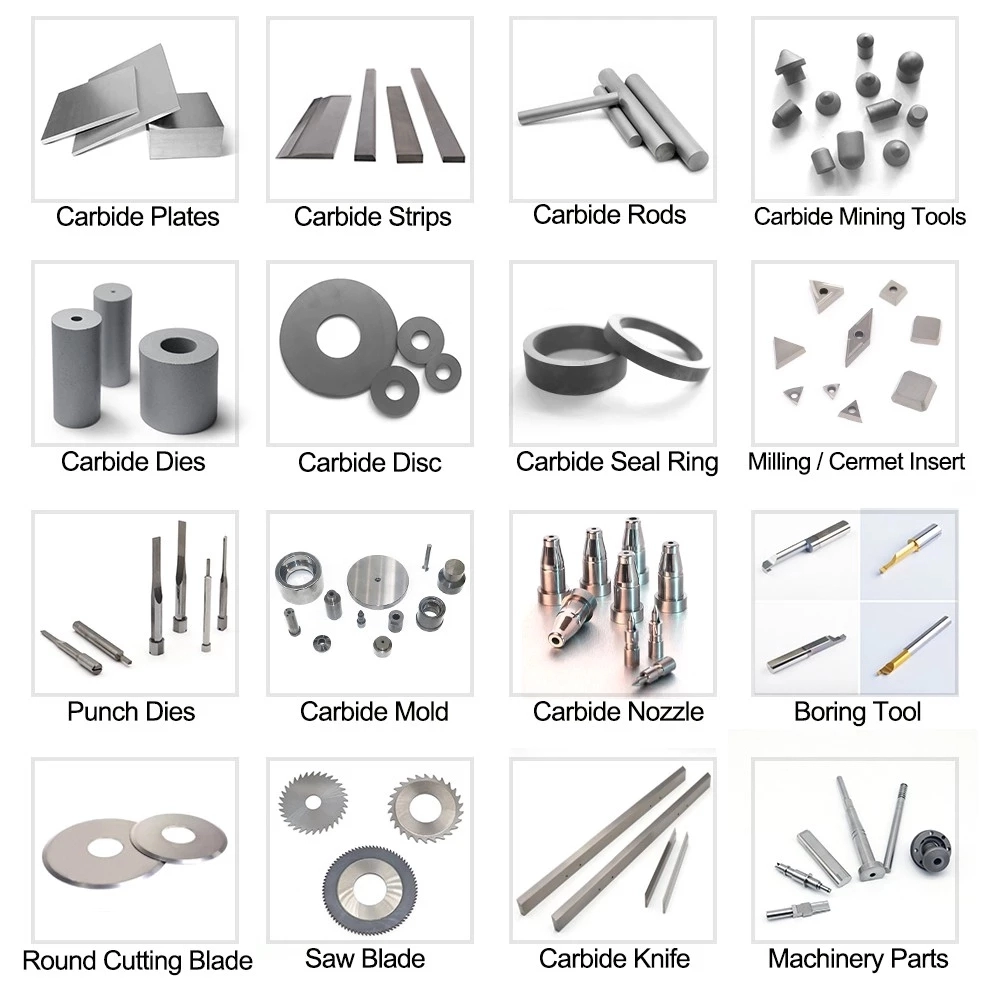

Our more Products
1. Tungsten Carbide rod
2. Tungsten Carbide Sealed Ring
3. Tugnsten Carbide Wear parts
4. Tugnsten Carbide Dies
5. Tungsten Carbide Non-standard parts
6. Tungsten Carbide Circular Blade
High wear resistance YD copper tungsten carbide composite welding rods (图2)
Why choose us ?
1.We are a real factory with very very nice wholesale price with high quality and good after sales service.
2.Rearch and development team with 5 members is rich experienced. OEM and label printing
orders are welcome.
3.The MOQ is 1pc.Sample and freight fee is borne by buyer.The sample fee will be reduced in
the next big quantity order.
4.Quick delivery time. We have carbide rods in stock. Delivery time within 3 days after your payment.If quantity is customized and large,delivery time is negociate.
Our Packing and shipment:
Packing
Outside Carton or plywood case with inner plastic box.
Shipping
UPS,TNT,EMS,Fedex,DHL,or by sea,as you reques
High wear resistance YD copper tungsten carbide composite welding rods (图3)
High wear resistance YD copper tungsten carbide composite welding rods (图4)

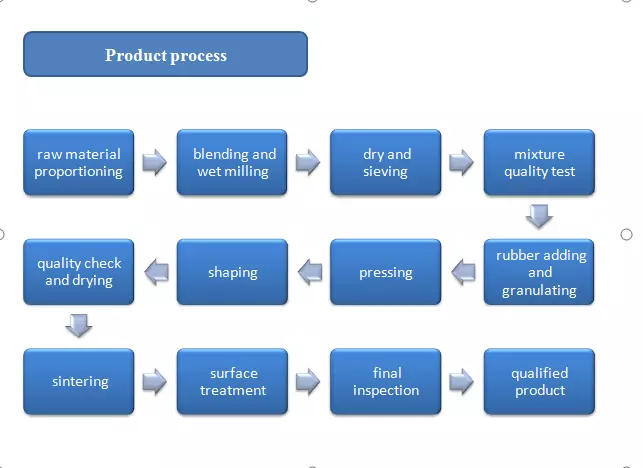

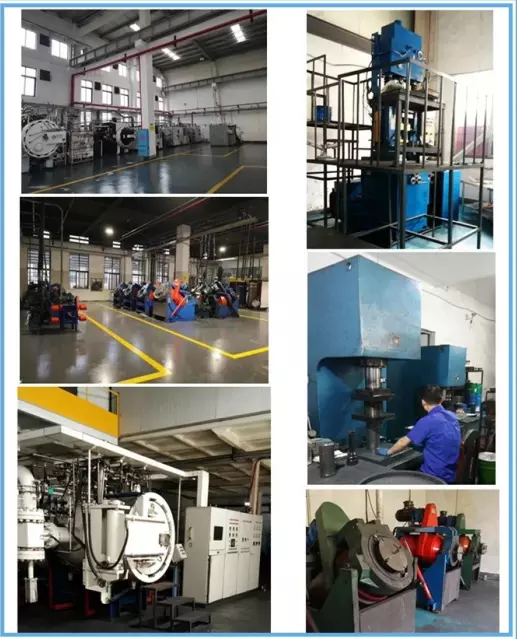

Our equipments and process
High wear resistance YD copper tungsten carbide composite welding rods (图5)
High wear resistance YD copper tungsten carbide composite welding rods (图6)

If have any more doubt, please feel free to contact with me. Also welcome to visit our factory at any time.
