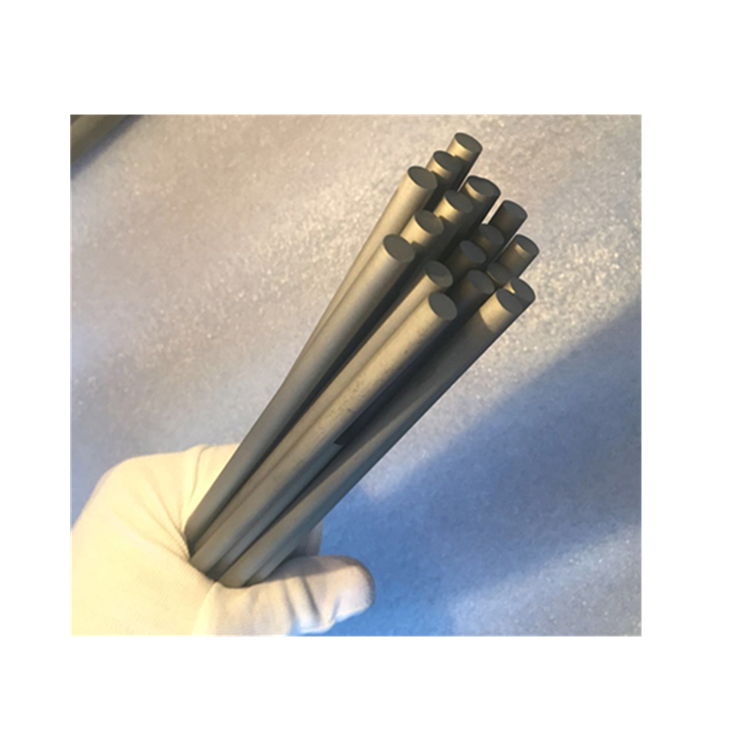

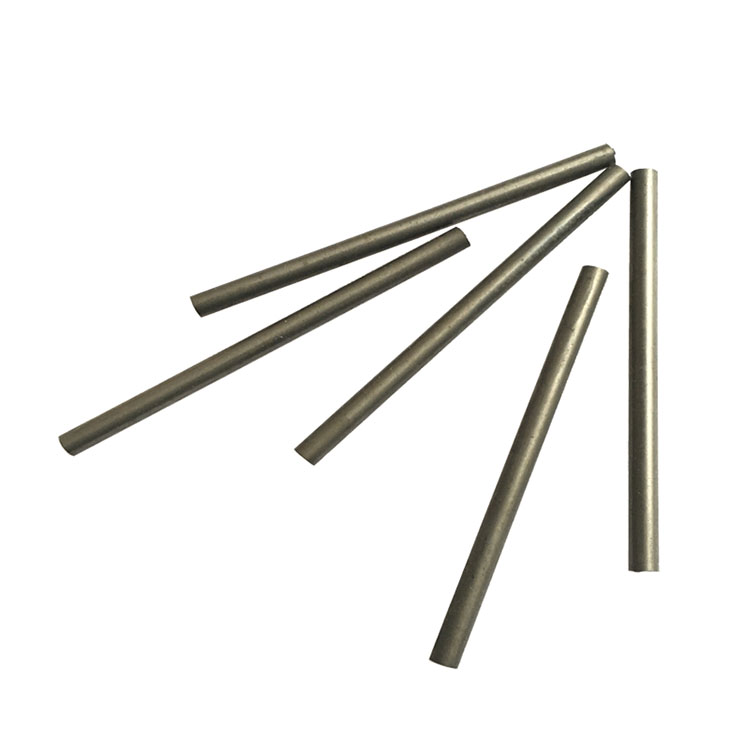

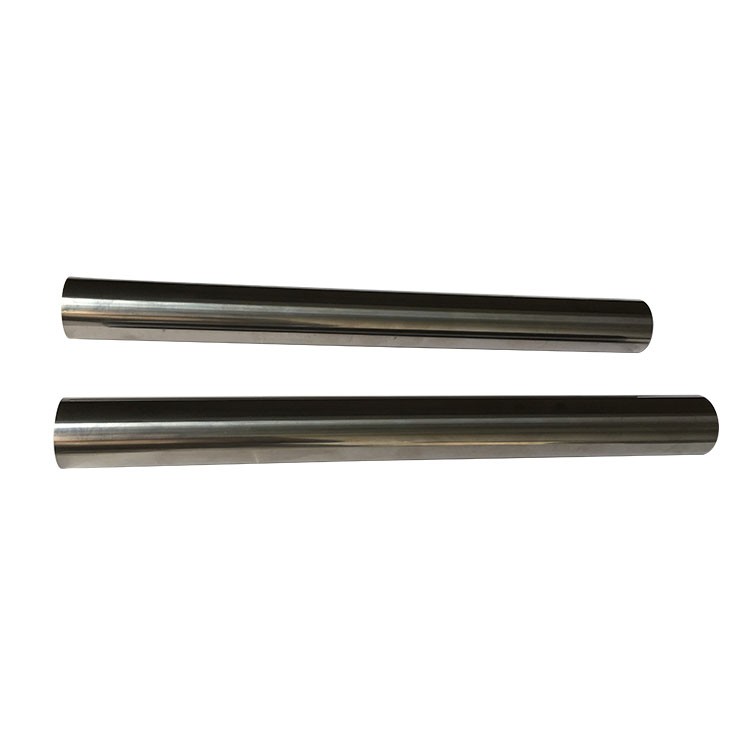

Tungsten carbide rod

Wear resistant and tough polishing tungsten carbide rod

Place of Origin： China
Brand Name： Zhenfang
Certification： ISO9001:2015
Grade： ZF00134
Minimum Order Quantity:100pcs
Price:USD 45-58/kg
Delivery Time:3-5 days
Payment Terms:30% after confirming order the balance before shiping
Supply Ability:100000 pcs/month

Wear resistant and tough polishing tungsten carbide rod

Application : carbide rod can be used for making endmills,gun drilling

Tungsten Carbide Rods
grade	typical proprty values			Performance & Applications
grade	density(g/cm³)	hardness(HRA)	bending strength(N/square millimeter)	Performance & Applications
YG3	15.10~15.30	92.5	1700	Superior wear resistance only less than YG3x sensitive to impact and impact and vibration,suitabie for cast non ferrous metal and its alloy finish turning,thread finish turning,semi-finish turning,thread finish turning and hold expanding.
YG3X	15.10~15.30	93.6	1450	Best wear resistance in tungesten and cobalt ally,but not good in anti impact proprety,suitable for cast iron,non-ferrous and alloy,quenched steel,alloy steel amall cutting section machining at hingh speed.
YG6X	14.80~15.00	92.4	2000	Belong to small granule carbide alloy wear resistance higher than YG6,suitable for machining cold and hard alloy cast iron and heat resistance alloy steel,as well as finish machiing for normal cast iron
YG6	14.80~15.00	91.1	2100	High wear resistance but less than YG3,better anti impact and anti vibration than YG3X suitable for cast iron,non-ferrous and alloy,non-metal material semi-finish machining and finish machining

Advantages of product:

1. Adopting spray drying tower granulation, raw material with low oxygen content, contamination, the flowability, apparent density particle and granulate is uniform;

2. Adopting high-precision extrusion molding machine, uniform product density, precise dimension, high roundness, and straightness;

3. Adopting advanced HIP sintering, effectively eliminate the internal holes and defects, the product has good compactness, high strength, good polishing performance;

4. Adopting a special stress-relief process to eliminate the internal stress of products to further enhance the product strength and improve the microstructure;

5. Precision grinding machine processing, ground rod can reach h6 tolerance.

Our guarantee:
1. 100% raw material.
2. Sintered in HIP Furnace
3. Size standard as per your requirements
4. Professional suggestion on products
5. Feedback within 24 hours
6. ISO9001: 2008 certificate.
7. Fully adopted in advance technology and equipment.
8. Professional manufacture for tungsten carbide items with 24 years experience.
9. Fully adopted in advance technology and equipment.
10. Quality Control System and strict inspection.

Contact us and put our vast mechanical knowledge and manufacturing experience to work for you. And you will enjoy benefits of good quality and services from our products! ALSO, we warmly welcome you and your drawing papers.

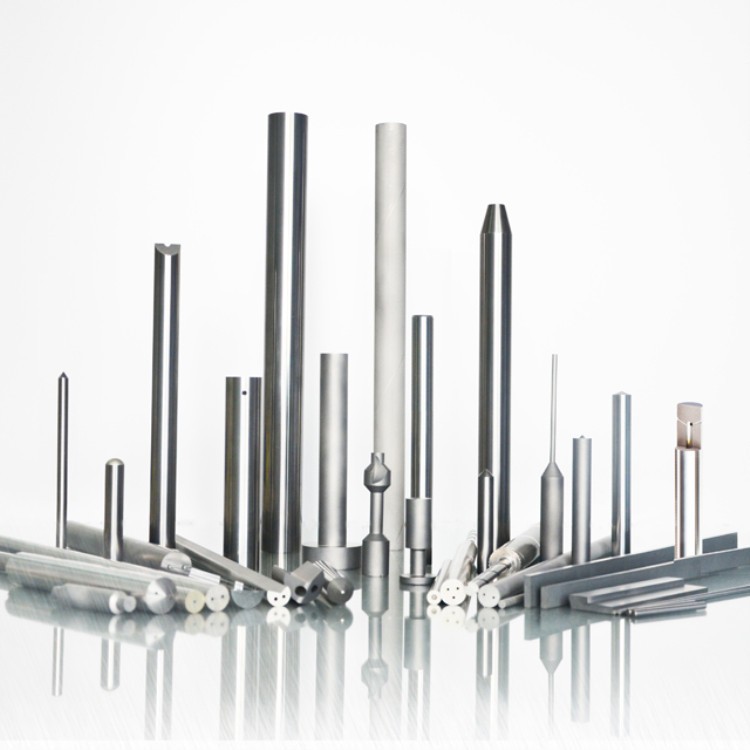

Our more Products
1. Tungsten Carbide rod
2. Tungsten Carbide Sealed Ring
3. Tugnsten Carbide Wear parts
4. Tugnsten Carbide Dies
5. Tungsten Carbide Non-standard parts
6. Tungsten Carbide Circular Blade

Unground 330mm length YL10.2 Solid Tungsten Carbide blank Rods (图1)

If have any more information, please feel free to contact with me.
