Tungsten Carbide Nozzle

  • YG8 W serials Blank Tungsten Carbide wire drawing Core
  • YG8 W serials Blank Tungsten Carbide wire drawing Core
YG8 W serials Blank Tungsten Carbide wire drawing Core YG8 W serials Blank Tungsten Carbide wire drawing Core

YG8 W serials Blank Tungsten Carbide wire drawing Core

  • Place of Origin: China
  • Brand Name: Zhenfang
  • Certification: ISO9001:2015
  • Grade: ZF00135
  • Minimum Order Quantity:100 pcs
  • Price:USD 45-58/kg
  • Delivery Time:7-15 days
  • Payment Terms:30% after confirming order the balance before shiping
  • Supply Ability:100000 pcs/month

YG8 W serials Blank Tungsten Carbide wire drawing Core



Product Description



Features of YG8 W serials Blank Tungsten Carbide wire drawing Core  :

1. Material:100% virgin raw material with submicron grain size

2. Grade: Various grades for choice

3. Advanced production equipments and testing equipments

4. Precious Ground and polished

5. High wear resistance,high hardness and impact toughness

6. Advanced technology, automatic pressing, HIP sintering and precision grinding

7. Samples & small orders are acceptable.

Application:

1. Used for making high temperature parts, wear parts, anti-shielding parts and corrosion-resistant parts.

2. Used in making hardware and standard stamping moulds.

3. Applicable for electronic industry, motor rotor, stator, LED lead frame, EI silicon sheet and so on.

4. Used for producing drawn mold, wear-resistant parts, stamping parts and automatic press with punch.

5. Used for stamping die, extrusion die, stamping molds.

6. Drawing many kinds of steel wire, aluminum wire, high carbon, MS wire etc





Advantages of our tungsten carbide dies

1. tungsten carbide with high hardness, high wear resistance and high red hardness, at 550 ℃ still maintain more than 56HRC hardness;
2. Has a high modulus of elasticity, generally is (4 ~ 7) × 104kg / mm2, and excellent rigidity at room temperature;
3. Have a high compressive strengthwhich is greater than 6000MPa;
4. Have good resistance to oxidation and corrosion resistance, acid resistance, alkali resistance and high temperature not easily oxidized;
5. Has a low coefficient of thermal expansion, suitable for manufacturing high ,precision, sharp die.

Our size range of tungsten carbide drawing dies (such molds accounted for the vast majority of tungsten carbide die.) Cold heading, cold punching, forming and shaping dies

1. d:2----120mm available

2. D12----200mm available

3. H5----100mm available

Also your drawngs are warmly welcomed by our factory.



Carbide wire guide dies including
Tungsten carbide wire guides
Tungsten carbide bush
Carbide bunching and stranding dies
Tungsten carbide straightener dies





Main Grade for YG8 W serials Blank Tungsten Carbide wire drawing Core :



Grade No.

Density

(g/cm3)

HRA

T.R.S

(Mpa)

Application

YG3X

14.9

≥91.5

≥1300

For drawing non-ferrous metal wire and stainless steel wire etc.

YG6

14.8

≥90.0

≥2150

For drawing steel wire and stainless steel wire etc.

YG6X

14.8

≥92.0

≥1860

For drawing nonferrous metal wire, steel wire, stainless steel wire. Good wear resistance and high toughness..

YG8

14.8

≥89.5

≥2320

For drawing steel wire, stainless steel wire. Good general performance.

YG11

14.4

≥88.5

≥2420

For fabricating drawing dies of steel tubes and rods under high compressibility ratio; punching, stamping, forging tools under large stress

Our more Products

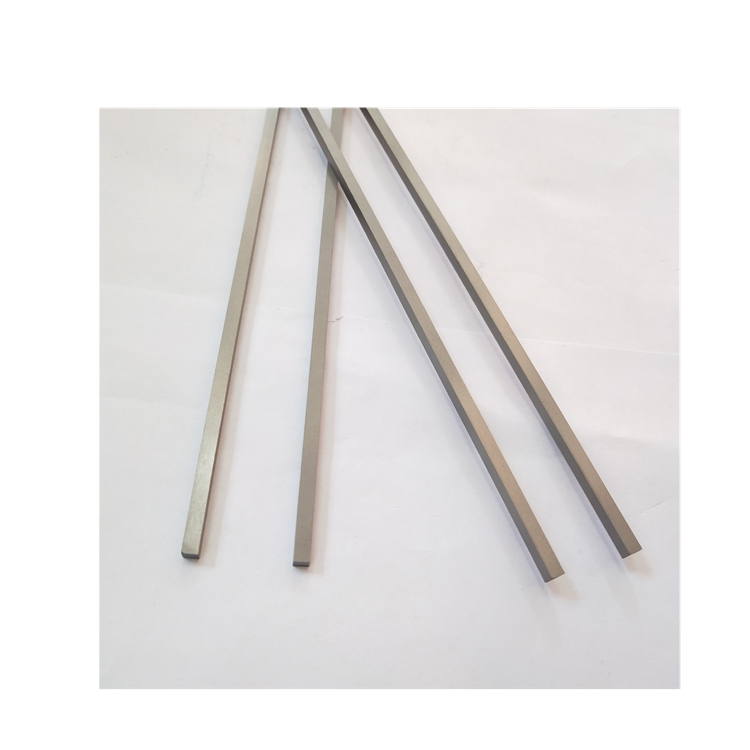

1. Tungsten Carbide rod
2. Tungsten Carbide Sealed Ring
3. Tugnsten Carbide Wear parts
4. Tugnsten Carbide Dies
5. Tungsten Carbide Non-standard parts

6. Tungsten Carbide Circular Blade

Factory customized tungsten carbide nozzle, super hard wear resistance and high temperature (图4)


Company introduction

1 We are a Real Factory in Zhuzhou City.

2. High density,Good machinability ,High modulus of elasticity ,Strong corrosion resistance,Non-poisonous ,Good mechanical properties

3.100% QC inspection Before Shipment.

4. We guarantee that all of our products are used with 100% Virgin Raw Material.

5. We can produce the Special Non-standard Shaped Carbide Products as per your sample or drawing.



Zhuzhou Zhenfang Yaguang Tungsten-Molybdenum Co.,LTD is a professional manufacture in tungsten carbide field. We have engaged in this field for over ten years. We have rich experience on tungsten carbide studying and manufacture.We pursuit providing efficient solution and high quality products for clients. We specialize in tungsten carbide rod, carbide plate&strips, carbide dies, carbide roller, carbide wear parts for petrochemical industry, carbide cutting tools.Tungsten carbide rod and customized wear parts is our advantage.
We always keep good relationship with our clients, enhancing communication and Cooperation to each other, trying to create WIN--WIN cooperation.




If have any further problem, please feel free to contact with me.
