Tungsten Carbide Parts Water Jet Cutting Nozzle High Hardness And Abrasive

Tungsten Carbide Parts Water Jet Cutting Nozzle High Hardness And Abrasive

Place of Origin： Zhuzhou, Hunan
Brand Name： Zhenfang
Certification： ISO9001:2015
Grade： ZF-N78
Minimum Order Quantity:10 pcs
Price:negotiable
Delivery Time:3-15days
Payment Terms:L/C, D/A, D/P, T/T, Western Union
Supply Ability:15tons/month

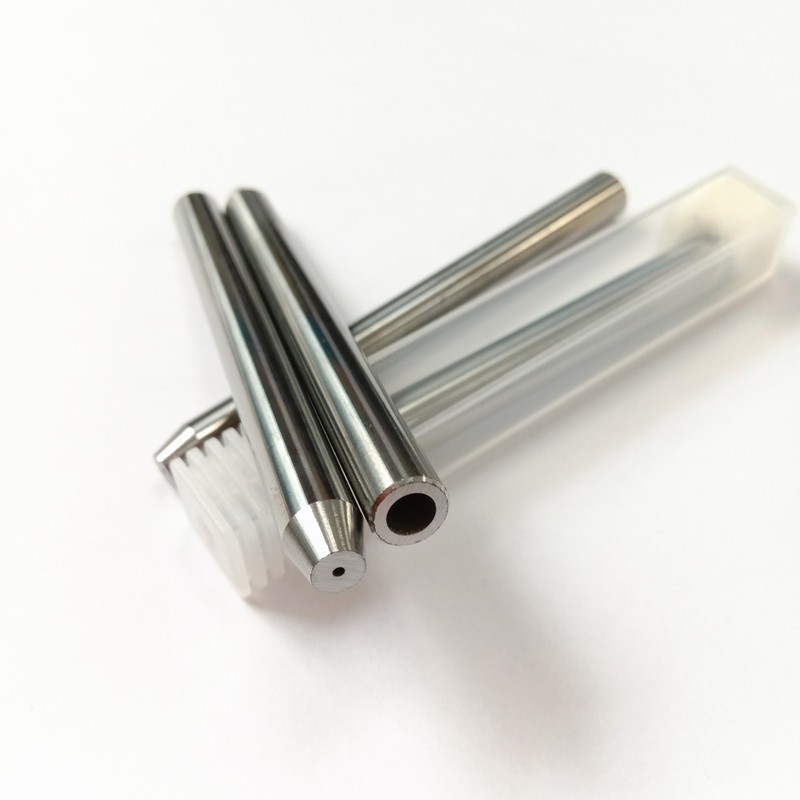

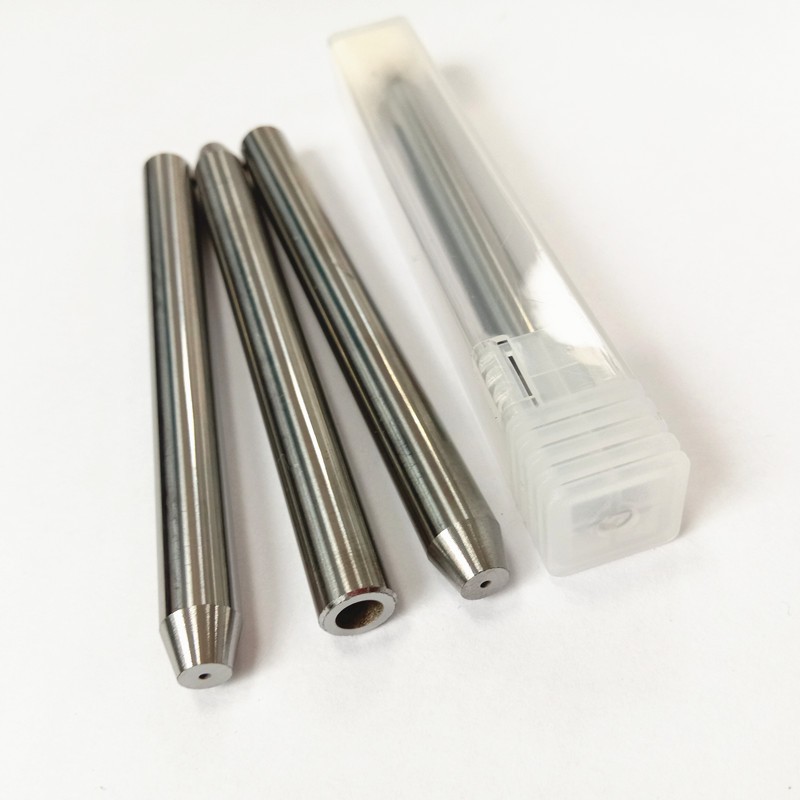

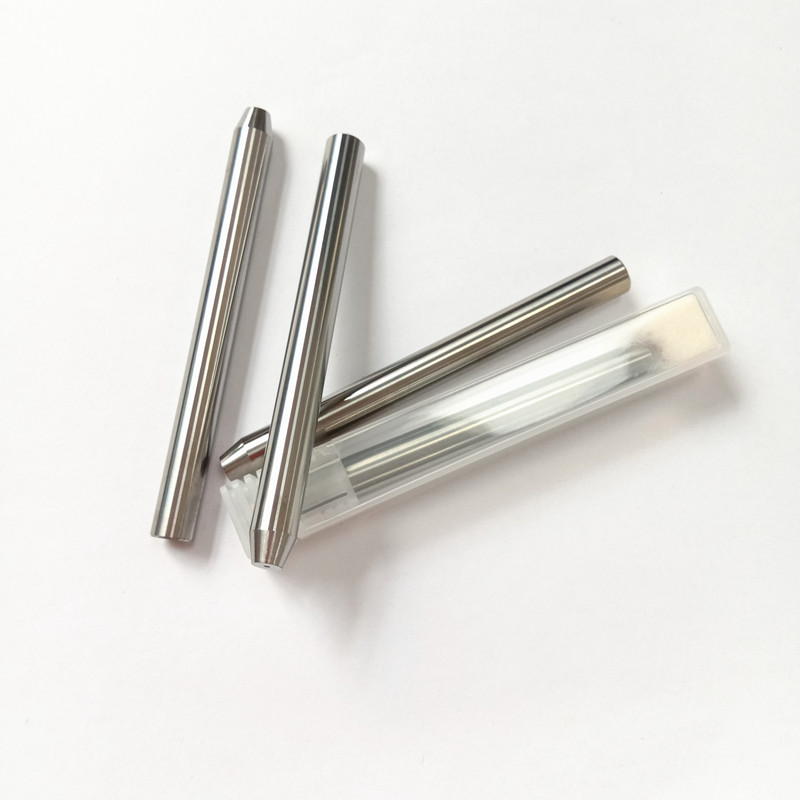

High Hardness And Abrasive Tungsten Carbide Waterjet Cutting Nozzle

Material	100% Virgin Tungsten Carbide
Grade	YG6/YL10.2/YG6X......
Application	water jet
Chemical composition	WC/Co
Property	good wear resistance and corrosion resistance
Grain size	ultrafine/fine/submicron/medium/coarse
Powder compaction	Press
Sintering	HIP sintering
Application	industrial cleaning, cooling, Oil Drilling Tools, Dust control, Painting

Tungsten carbide nozzle is made from hot pressing with straight bore and venture bore type, which have high hardness, good wear resistance, high anti-corrosion ability. Usually they offers a long life with high performance. They are widely uased in abrasive water jet, dry/wet blasting,suction blast,scrubber,descaling,slurry jet,centrifuge and so on.

Unique advantage of tungsten carbide water jet nozzles

1. Adopt supermicron grain size, which can result in better wear-reseistance and longer life span.

2. Super oxygen-resistant

3. Using HIP sintering which can increase the performance of carbide greatly.

4. Precision Ground and polished

Detail information:

1. Size: Φ7.14*Φ1.02*76.2mm( customized is also available)

2. Material: tungsten carbide(WC+Co)

3. Hardness: HRA92.5-93

4. Application: waterjet cutting head

Physic character of tungsten carbide water jet nozzles

1. Long life span: 80 hrs for finish grinding, 140hrs for rough grinding

2. Density:15.45g/cm3 —15.60 g/cm3

3. Hardness:2000Mpa-2400Mpa

4. the tolerance of polish and ground can be +0.005/-0.005m

Application of tungsten carbide water jet nozzles

1.Metal cutting

2.Ceramic cutting

3.Stone cutting

4.Glass cutting

Recommen Grade information

Grade	Density(g/cm3)	Hardness(HRA)	TRS(MPa)	grain Size	Composition
YG6X	14.95	92	1800	0.6um	6%Co+94% WC
YG6	14.95	90	1900	0.8-1.2um	6%Co+94% WC
YL10.2	14.6	92.8	4000	0.6-0.7um	10%Co+90% WC
YG10X	14.5	93	3500	0.4-0.6um	10%Co+90% WC

Product Application

We can provide you all kinds of high performance nozzles, such as spray nozzles, oil nozzles, blasting nozzles and so on. With high speed to wash,well wear resistance, excellent corrosion resistance.

Tungsten carbide nozzles often be used in agricultural irrigation and urban greening.

Used in geological prospecting, machinery or tool manufacturing and serves as drill bit in wind drill and electric drills for coal dig.

Fit for precision lathe are used in nonstop cutting of die-cast iron.

Used For painting

Advantages of Tungsten Carbide Nozzle

Cost effective

Good performance property of abrasive resistance

corrosion resistance

stable property performance and long service life.

Customized nozzles are available according to your drawing and application.

Our Service:

We can according to customers’ requirement and drawings or sample to process all kinds of fine products, also can help customer in design.
