Solid Carbide Rods

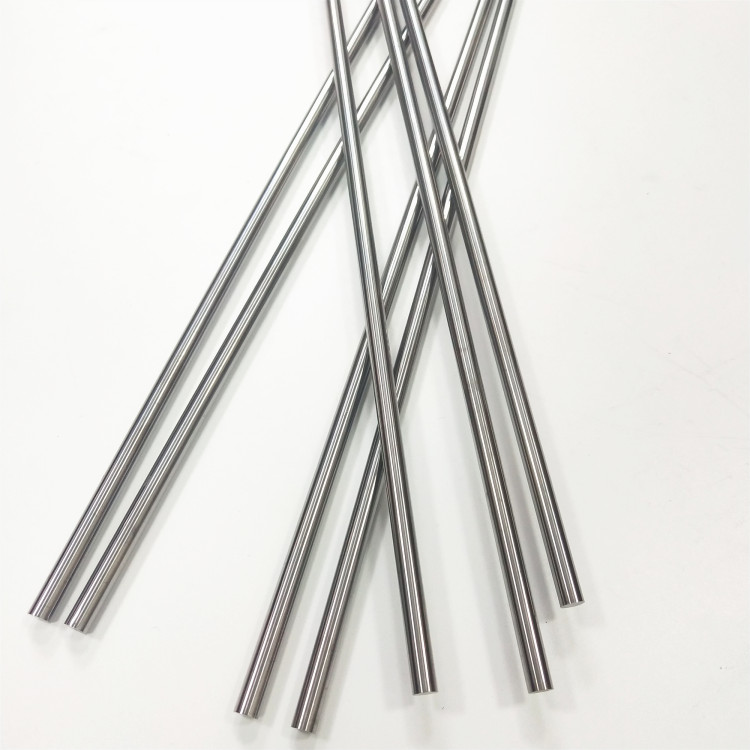

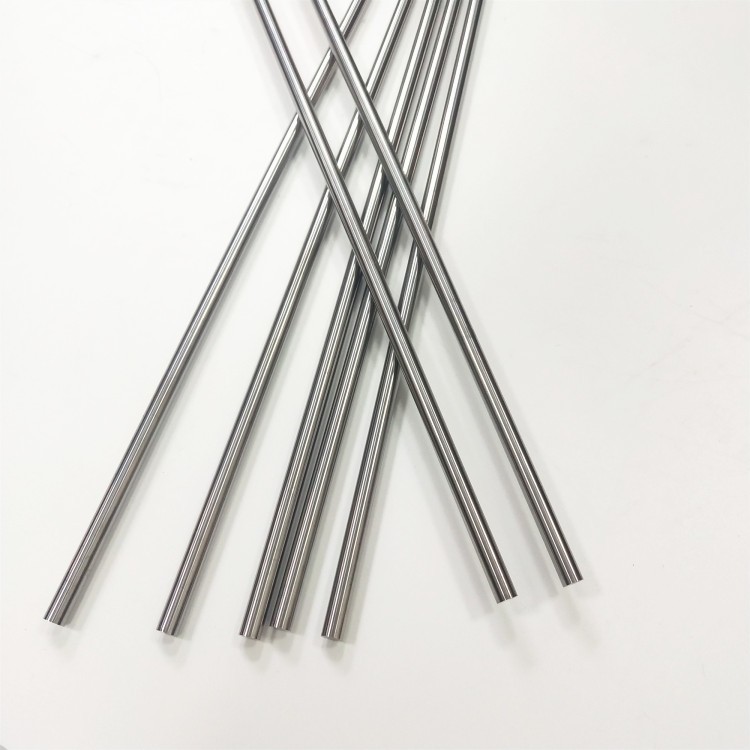

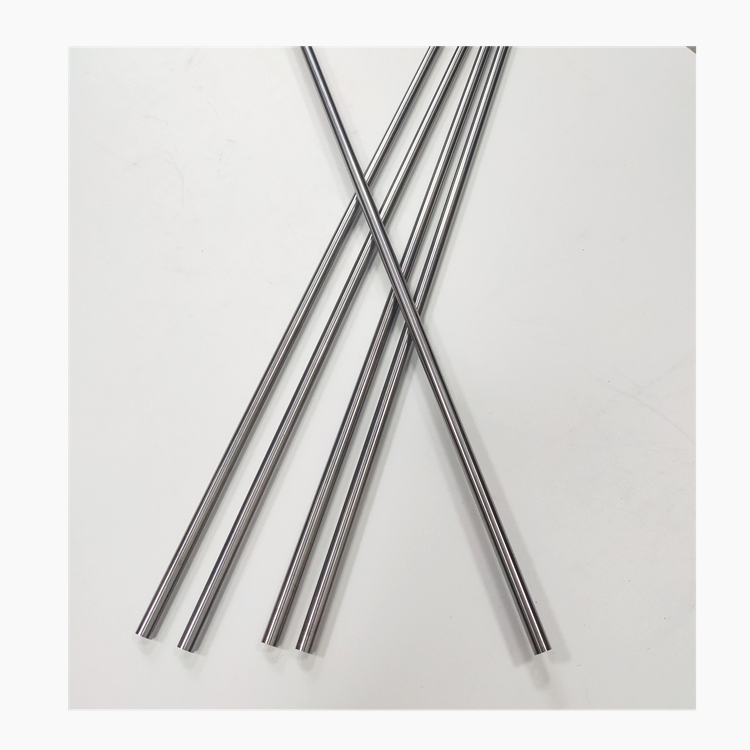

D6x330mm ground YL10.2 tungsten carbide round bar solid carbide rod

D6x330mm ground YL10.2 tungsten carbide round bar solid carbide rod

Place of Origin： China
Brand Name： Zhenfang
Certification： ISO9001:2015
Grade： YG6, YG8,YL10.2 etc
Minimum Order Quantity:100 pcs
Price:USD 45-58/kg
Delivery Time:3-5 days
Payment Terms:30% after confirming order the balance before shiping
Supply Ability:100000 pcs/month

D6x330mm ground YL10.2 tungsten carbide round bar solid carbide rod

Feature Advantage:

Tungsten carbide extruded rod

1. High accuracy with long lifespan
2. Hip sintered, good performance
3. Various sizes and full types available
4. Products can be customized upon requirement

Description of tungsten carbide rod:

As for tungsten carbide rod, below are the general features for your reference

For more details of specific type, please inform us:
1. Better wear resistance, higher toughness, better deformation and fracture resistance, results in a long life and good size accuracy
2. Adopt advanced automatic extrusion equipment
3. HIP sintering and precision grinding to ensure the good performance
4. Both blank and finished tungsten carbide rods available
5. Can reach a mirror effect surface after accurate grinding and polishing

Applications:

Tungsten carbide Rod is mainly used in welding or making the drill bits, endmills, reamers, graver, integral vertical milling cutter and special cutter for automobile, printed circuit board, engine, and etc.

Besides, they can be used for making of cemented carbide stamping head, Core bar and perforation tools.

Our guarantee:
1. 100% raw material.
2. Sintered in HIP Furnace
3. Size standard as per your requirements
4. Professional suggestion on products
5. Feedback within 24 hours
6. ISO9001: 2015 certificate.
7. Fully adopted in advance technology and equipment.
8. Professional manufacture for tungsten carbide items with more than 13 years experience.
9. Fully adopted in advance technology and equipment.
10. Quality Control System and strict inspection.

Contact us and put our vast mechanical knowledge and manufacturing experience to work for you. And you will enjoy benefits of good quality and services from our products! ALSO, we warmly welcome you and your drawing papers.

Production Process:

Power mixing-Pressing-HIP sintering-Blank- Processing- Finished

Diameter 0.3mm*330mm Fine Grain Polished Superfine Tungsten Carbide Rod(图1)

Common size list

Grinding			Blank
D		L	D		L
(mm)	Tol.(mm)	Tol.(+1mm)	(mm)	Tol.(mm)	Tol.(+3mm)
0.7	h6	330	1	+0.2	330
2	h6	330	2.2	+0.2	330
3	h6	330	2.7	+0.2	330
3.175	h6	330	3.2	+0.2	330
4	h6	330	3.7	+0.2	330
5	h6	330	4.2	+0.2	330
6.35	h6	330	4.7	+0.2	330
7	h6	330	5.2	+0.2	330
8	h6	330	5.7	+0.2	330
9	h6	330	6.2	+0.2	330
10	h6	330	6.7	+0.2	330
12	h6	330	7.7	+0.3	330
12.7	h6	330	8.2	+0.3	330
13	h6	330	8.7	+0.3	330
14	h6	330	9.2	+0.3	330
15	h6	330	9.7	+0.3	330
16	h6	330	10.2	+0.3	330
17	h6	330	10.7	+0.3	330
18	h6	330	11.2	+0.3	330
20	h6	330	12.2	+0.3	330
25	h6	330	14.3	+0.3	330
30	h6	330	16.2	+0.3	330
