Solid Carbide Rods

High Precision Wear Proof Solid Cemented Carbide Rod,Tungsten Carbide Drill Bits,Tungsten Carbide

High Precision Wear Proof Solid Cemented Carbide Rod,Tungsten Carbide Drill Bits,Tungsten Carbide

Place of Origin： China
Brand Name： Zhenfang
Certification： ISO9001:2015
Grade： ZF00149
Minimum Order Quantity:100 pcs
Price:USD 45-58/kg
Delivery Time:3-5 days
Payment Terms:30% after confirming order the balance before shiping
Supply Ability:100000 pcs/month

High Precision Wear Proof Solid Cemented Carbide Rod,Tungsten Carbide Drill Bits,Tungsten Carbide

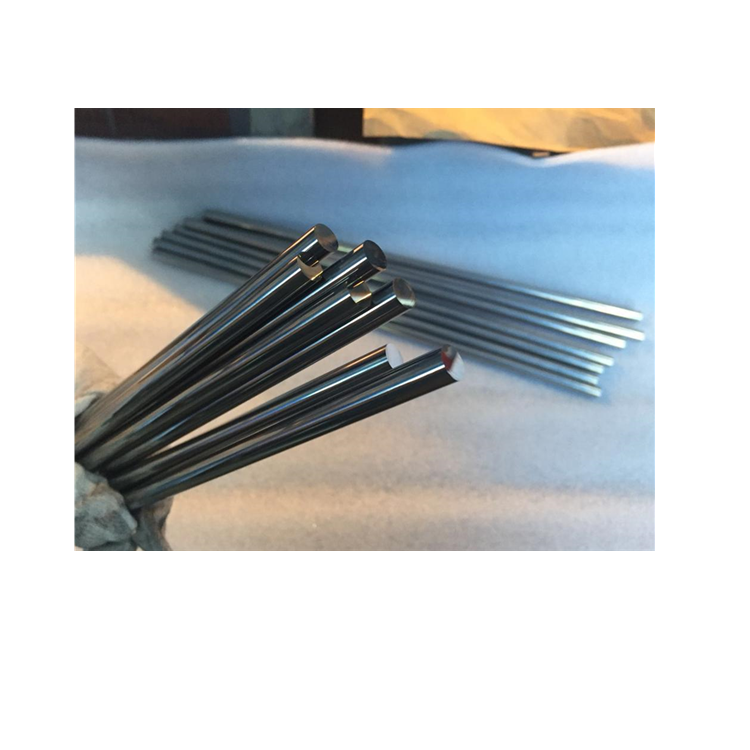

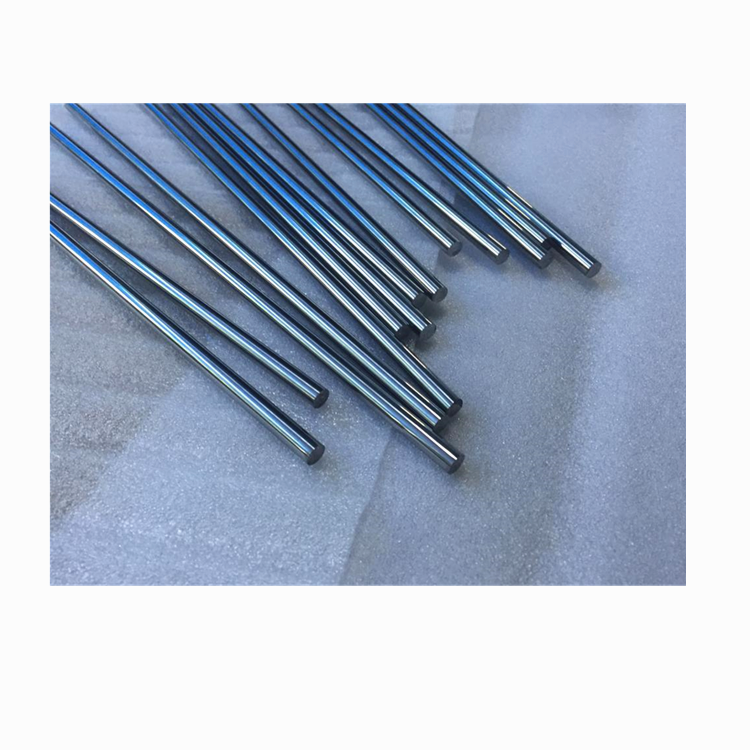

Tungsten carbide rod are mostly applied for drill bits, end mills, and reamers with sub-micron grain grade YG10X, for non-ferrous precision cutting and wood cutting with grade YG6X, and for fiberglass reinforced plastics, titanium alloys, hardened steel with ultra-fine grain grade YG8X, etc.

The tungsten carbide rods we can manufacture and supply
are varied in different sizes as well as tungsten carbide grades.

Following is a detailed description of one kind specification of tungsten cabride rod:

Specificaiton: Diameter:1.5 mm x 330mm
Surface Condition: Sintered blank
Chemical Composition: WC :88.5% + Co: 10% + Others: 1.5%
Density: 14.2~14.6 g/cm3
Hardness: HRA91.5 min.
T.R.S.: 3200N/mm2 min.

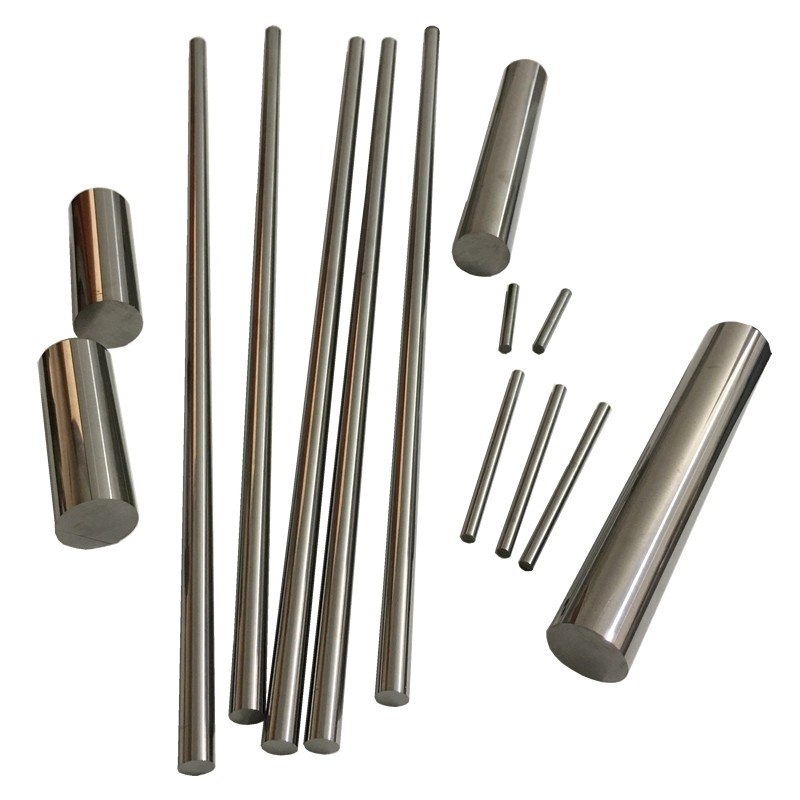

Tungsten carbide rods include rods with the shapes of round, rectangular and square, solid rods and rods with one or more straight or coolants. The grades are mostly fine and super fine grain with high performance.

Purpose: Fine performance, suitable for processing of non-ferrous metal, plastic materials, carbon fiber, chilled cast iron and heat-resistant alloy steel, high-temperature alloy steel, stainless steel, high manganese steel, etc. Used in the manufacture of various metals and non-metal cutting tools such as drills, end mills, reamers. Also widely used in stamping tools and wear-resistant tools, etc.

We supply premium grade tungsten carbide rod from stock in unground, centerless ground and polished form.
Recommended Grade for tungsten carbide rod: YG6, YG8, YG6X, YG012, YG013, YG8A etc
Tungsten carbide rod applications include drill bits, end mills, and reamers. Custom diameters and length are also available in these grades as well as metric sizes.

Tungsten Carbide Rods are manufactured as standards with one, two, or three holes, straight or twisted to a 30 or 40 degree helix, or solid with no holes. All rods are available in standard lengths of 310 and 330 mm. Custom lengths available by request.

Grade	Grain size(μm)	Density(g/cm³)	Hardness(>=HRA)	TRS(>=MPA)
YG8	1.6	14.80	89.0	2800
YG6X	1.0	14.90	90.5	2300
ZF05	0.4	14.80	93.0	3300
LX25	0.8	14.50	91.3	3800
YL10.2	0.8	14.40	91.5	4000
ZF10	0.5	14.2	92.7	4400

Dimension(mm)	Tolerance of diameter(mm)	Tolerance of length(mm)
Min BL-Φ3.0×330	+0.20/+0.45	-0/+5.0
Max BL-Φ50.0×330	+0.20/+0.45	-0/+5.0

Our guarantee:
1. 100% raw material.
2. Sintered in HIP Furnace
3. Size standard as per your requirements
4. Professional suggestion on products
5. Feedback within 24 hours
6. ISO9001: 2015 certificate.
7. Fully adopted in advance technology and equipment.
8. Professional manufacture for tungsten carbide items with 24 years experience.
9. Fully adopted in advance technology and equipment.
10. Quality Control System and strict inspection.

Contact us and put our vast mechanical knowledge and manufacturing experience to work for you. And you will enjoy benefits of good quality and services from our products! ALSO, we warmly welcome you and your drawing papers.

Our more products

1. Tungsten Carbide rod

2. Tungsten Carbide Sealed Ring

3. Tugnsten Carbide Wear parts

4. Tugnsten Carbide Dies

5. Tungsten Carbide Non-standard parts

6. Tungsten Carbide Circular Blade

Our Packing and shipment:

Packing	Outside Carton or plywood case with inner plastic box.
Shipping	UPS,TNT,EMS,Fedex,DHL,or by sea,as you reques

Our factory

Zhuzhou Zhenfang Yaguang Tungsten-Molybdenum Co.,LTD is a professional manufacture in tungsten carbide field. We have engaged in this field for over ten years. We have rich experience on tungsten carbide studying and manufacture.We pursuit providing efficient solution and high quality products for clients. We specialize in tungsten carbide rod, carbide plate&strips, carbide dies, carbide roller, carbide wear parts for petrochemical industry, carbide cutting tools.Tungsten carbide rod and customized wear parts is our advantage.
We always keep good relationship with our clients, enhancing communication

330mm Length YL10.2 Competitive Price Finished and Grounded Tungsten Solid Carbide Rod for End Mill (图2)

FAQ

Q1.What is your advantage ?

A:We have the best factory to produce for you,could guarantee the price is the most competitive. BEGUN carbide was recognized by market, it widely used for Chinese big project,such as subway,high speed rail,tunnel,mining and so on.At the same time,many big projects of the South africa,America,European and Austria also choose our carbide.

Q2. What is your terms of payment?

A: T/T 30% as deposit, and 70% balance before delivery. We'll show you the photos of the products and packages before you pay the balance.

Q3.Could you offer OEM and ODM service?

A:That is ok ,we have more than 5 years experience in OEM service.professional R&D department is ready to design products to fit your specifications,they can offer the professional advice and CAD drawings(3D) for you!

Q4. How about your delivery time?

A: Lead time as fast as 7-15 days!

Q5. What is the MOQ ?

A.No MOQ for our existing stock,for special size,MOQ is 5 KGS.

Q6. What is your sample policy?

A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost

Q7. Do you test all your goods before delivery?

A: Yes, we have 100% test before delivery.Our production is based on ISO9001,we have more than 10 years experience of QC team and strictly quality control system in our production process.

Q8. What about the package?

A.It can make as the you need and depend on the products shapes. Generally, we can provide iron drum, carton, wooden case, and bag packages.

Q9: How do you make our business long-term and good relationship?

A:1. We keep good quality and competitive price to ensure our customers benefit ;

2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.

Our Services

Customer Notice
To save your value time, please inform us of the following information:
1. Grade
2. Type/Dimension/Clear Drawing
3. Available tolerance
4. Order quantity
5. Blanks or finished products
6. If you have any special requirements of the products, pls send us in advance. We will satisfy you as much as we can.
