Solid Carbide Rods

  • Unground 10% Cobalt Tungsten Solid Carbide Rod
  • Unground 10% Cobalt Tungsten Solid Carbide Rod
  • Unground 10% Cobalt Tungsten Solid Carbide Rod
Unground 10% Cobalt Tungsten Solid Carbide Rod Unground 10% Cobalt Tungsten Solid Carbide Rod Unground 10% Cobalt Tungsten Solid Carbide Rod

Unground 10% Cobalt Tungsten Solid Carbide Rod

  • Place of Origin: China
  • Brand Name: Zhenfang
  • Certification: ISO9001:2015
  • Grade: ZF0046
  • Minimum Order Quantity:10 pcs
  • Price:USD 45-58/kg
  • Delivery Time:3-5 days
  • Payment Terms:100% TT before shiping
  • Supply Ability:100000 pcs/month

Unground 10% Cobalt Tungsten Solid Carbide Rod

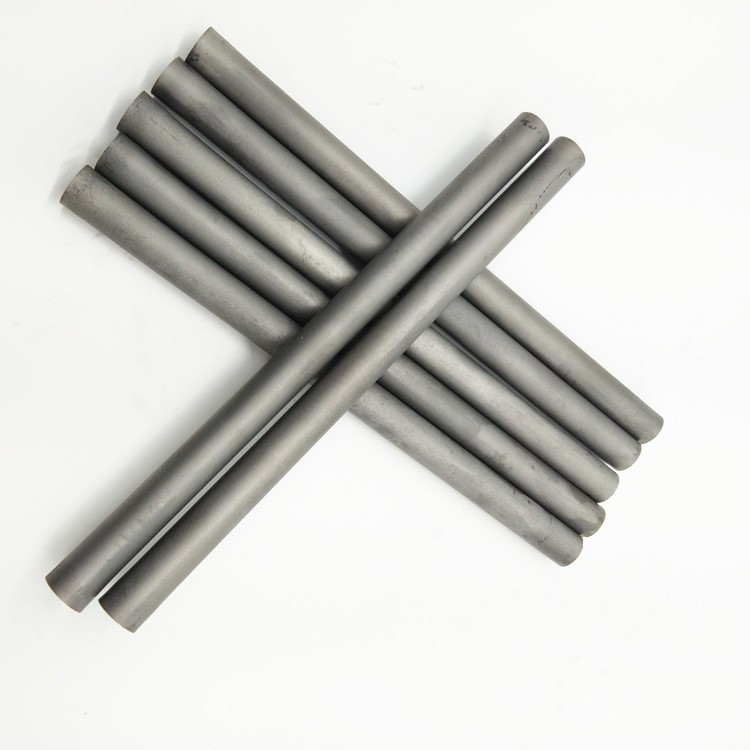

Product Show

Unground 10% Cobalt Tungsten Solid Carbide Rod(图1)


We , ZHUZHOU ZHENFANG Yaguang Tungsten-Molybdenum CO., LTD, manufacture unground carbide rods in stock with HIP and CIP sintered  and 100% virgin material. Our grade include ISO K05 to K40, from machining carbon steel to aluminum , non-ferrous metals and titanium or we develop grade for your applications.

We recommended grade 10% cobalt covers a number of applications in cutting tools. The stability and high performance of the series bring many benefits to our customers and inspires them to develop quality products.

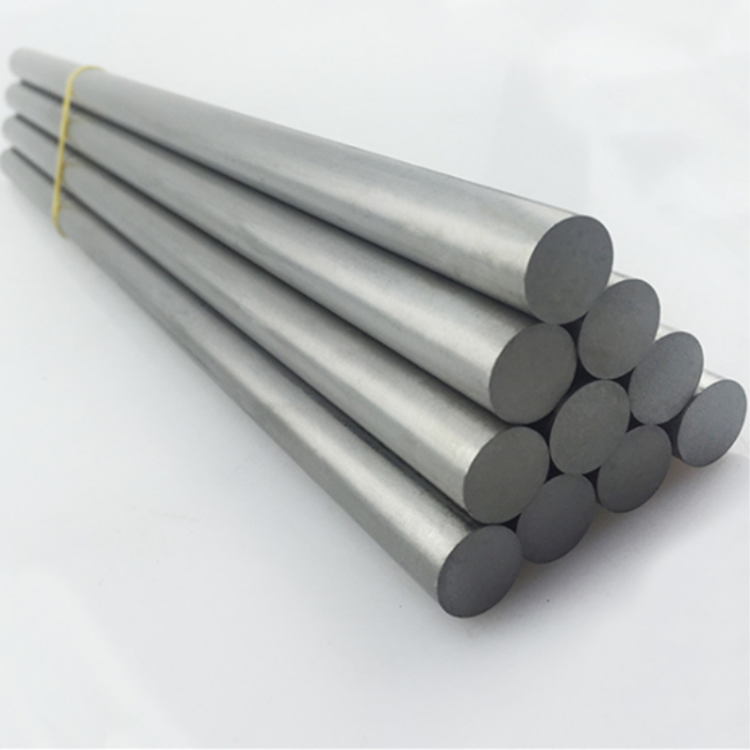

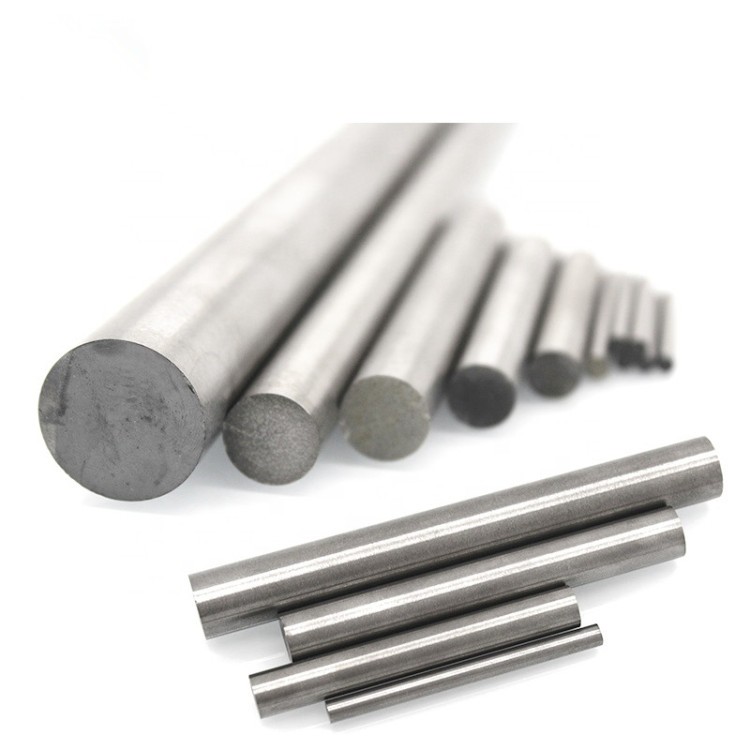

Solid tungsten carbide rods:

1. Grade: 10% cobalt and 12% cobalt recommend

2. Size: Diameter 1--30mm available

3. Certification: ISO9001,

4. Mirror polished to h6 and unground carbide rod are  available

5. Each Metric and Inch dimensions available

6. Standard length: 330mm  and can cut into different length as per requirments



Cheap price tungsten carbide solid round rod Features?

1. Excellent quality and competitive price

2. 100% raw material and recyle material as per your option

3. Good abrasion, heat and corrosion resistance

4. Various size and shape, grade

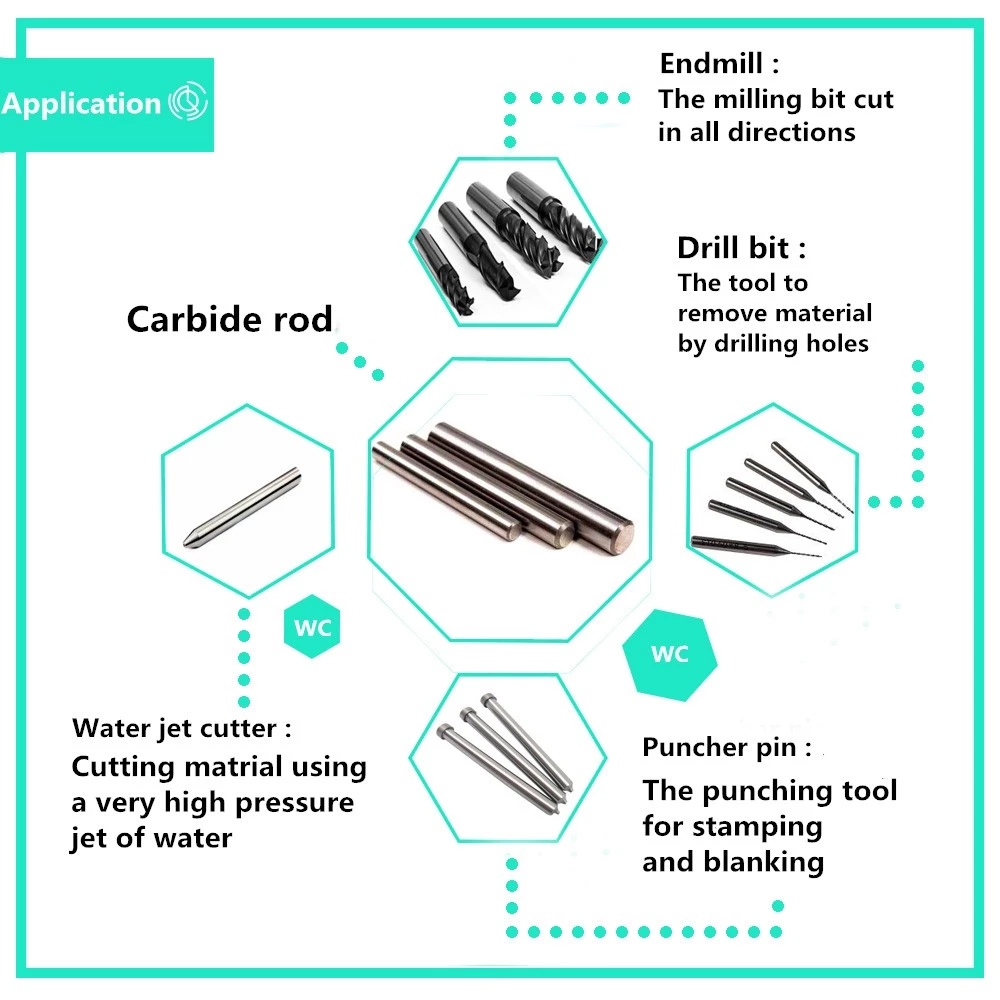

What's the  Application?

1.Metal working, process into press tool, blade, cutter, wear parts, Blanks and polishing tungsten carbide plates for machinery lathe to machine HSS material,Alu ,steel,and stainless steel,etc.

2.Wood working,blanks and polishing solid tungsten carbide rods for wood working stone pit industry and mining industry.

3.Stone working,blank and polishing solid tungsten carbide rods for crusher machining of marble,granite,cobblestone,mountain stone,etc.

4.Other application,such as wear resistance parts of punching mold,measuring and cutting industry.

Recommended Grade:

GRADEGRAIN SIZECOBALTDENSITYHRATRS
LX25<=0.8um10%14.4>=91.3>=3600
LBC15<=0.8um10%14.4>=91.5>=3800
LBC25<=0.6um12%14.1>=92.5>=4000





Dimension and Tolerance:

Dimension(mm)Tolerance of diameter(mm)Tolerance of length(mm)
Min  BL-Φ3.0×330+0.20/+0.5-0/+5.0
Max  BL-Φ50.0×330+0.30/+0.8-0/+5.0

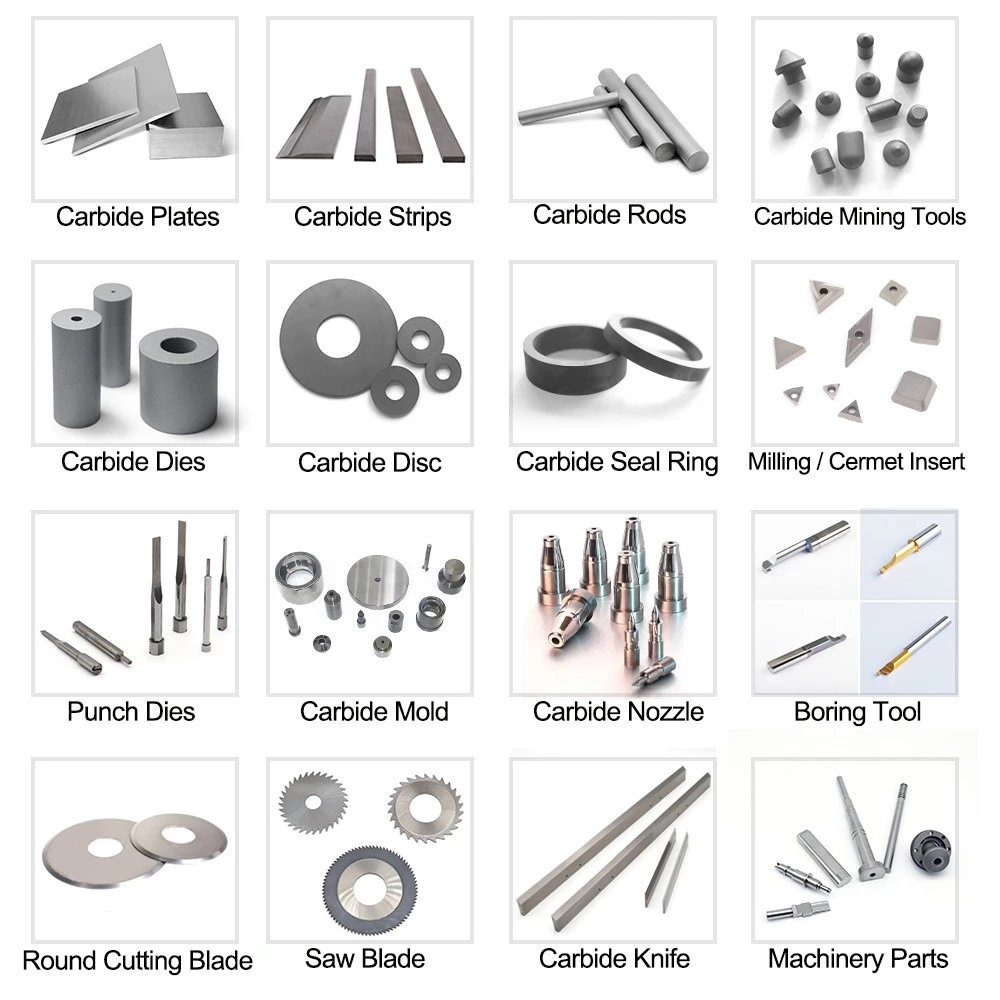

Our more Products
1. Tungsten Carbide rod
2. Tungsten Carbide Sealed Ring
3. Tugnsten Carbide Wear parts
4. Tugnsten Carbide Dies
5. Tungsten Carbide Non-standard parts
6. Tungsten Carbide Circular Blade

Unground 10% Cobalt Tungsten Solid Carbide Rod(图2)

If have any further problem, please feel free to contact with me.
