Plunger

  • High Pressure Cleaning Pump Parts Solid Carbide Plunger With High Wear Resistance
  • High Pressure Cleaning Pump Parts Solid Carbide Plunger With High Wear Resistance
  • High Pressure Cleaning Pump Parts Solid Carbide Plunger With High Wear Resistance
  • High Pressure Cleaning Pump Parts Solid Carbide Plunger With High Wear Resistance
High Pressure Cleaning Pump Parts Solid Carbide Plunger With High Wear Resistance High Pressure Cleaning Pump Parts Solid Carbide Plunger With High Wear Resistance High Pressure Cleaning Pump Parts Solid Carbide Plunger With High Wear Resistance High Pressure Cleaning Pump Parts Solid Carbide Plunger With High Wear Resistance

High Pressure Cleaning Pump Parts Solid Carbide Plunger With High Wear Resistance

  • Place of Origin: Zhuzhou, Hunan
  • Brand Name: Zhenfang
  • Certification: ISO9001:2015
  • Grade: K10 K20 K30 YL10.2 YN8 YN9
  • Minimum Order Quantity:3 pcs
  • Price:Negotiable
  • Delivery Time:3-18days
  • Payment Terms:L/C, D/A, D/P, T/T, Western Union
  • Supply Ability:15tons/month

For more information, please contact me

Shirley Pan

Email: shirley@chinahardalloy.com

Mobile: +86 17773379950(wechat/Whatspp)

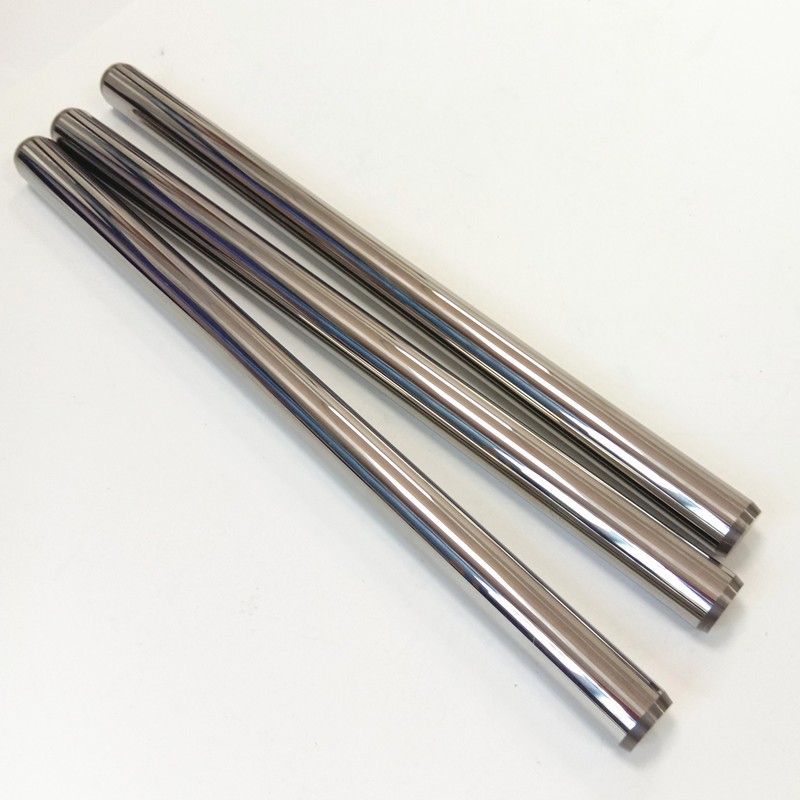

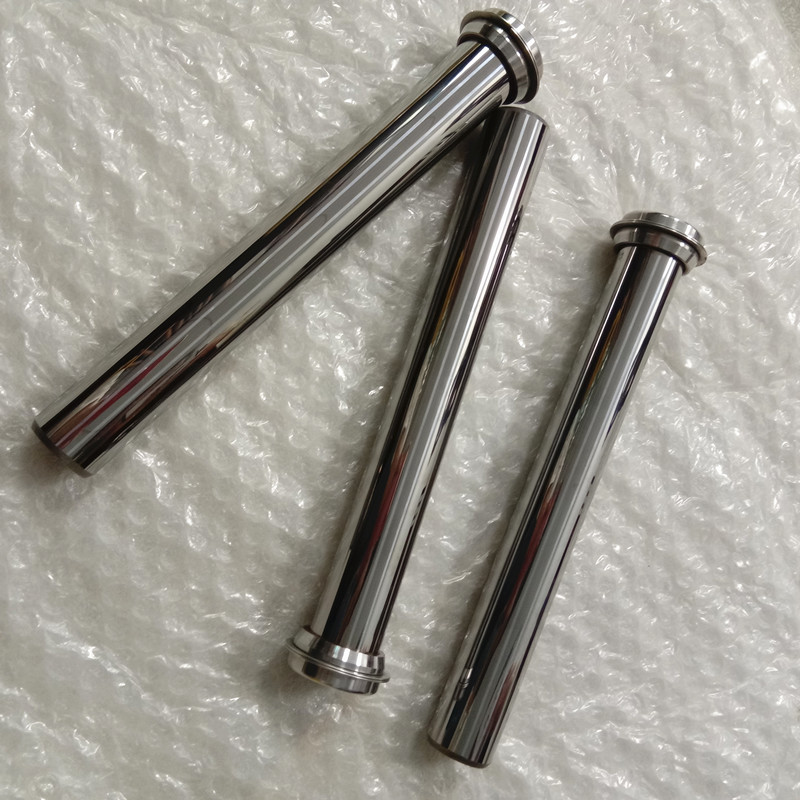

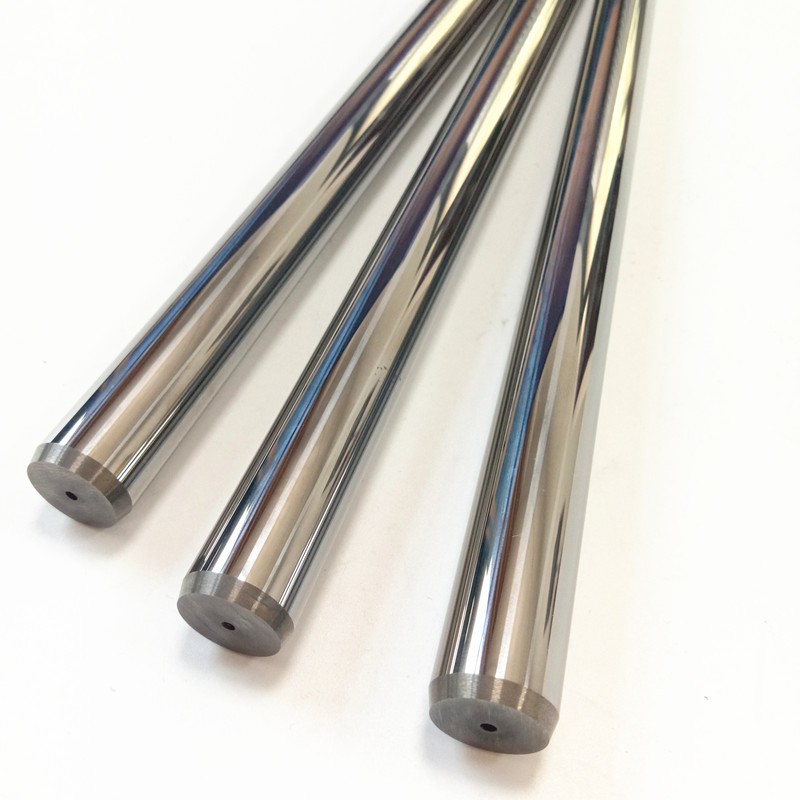

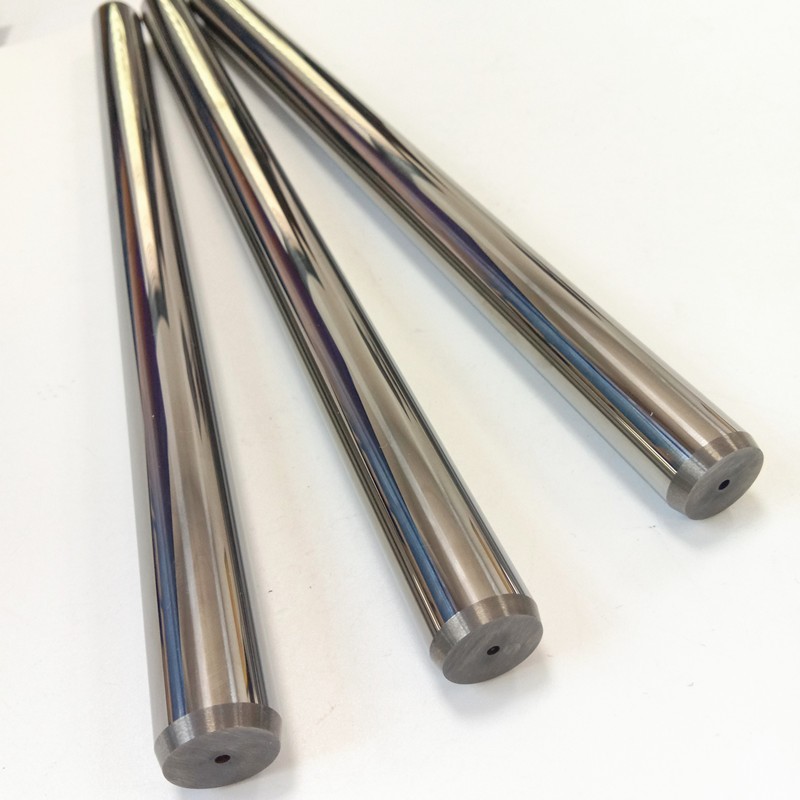

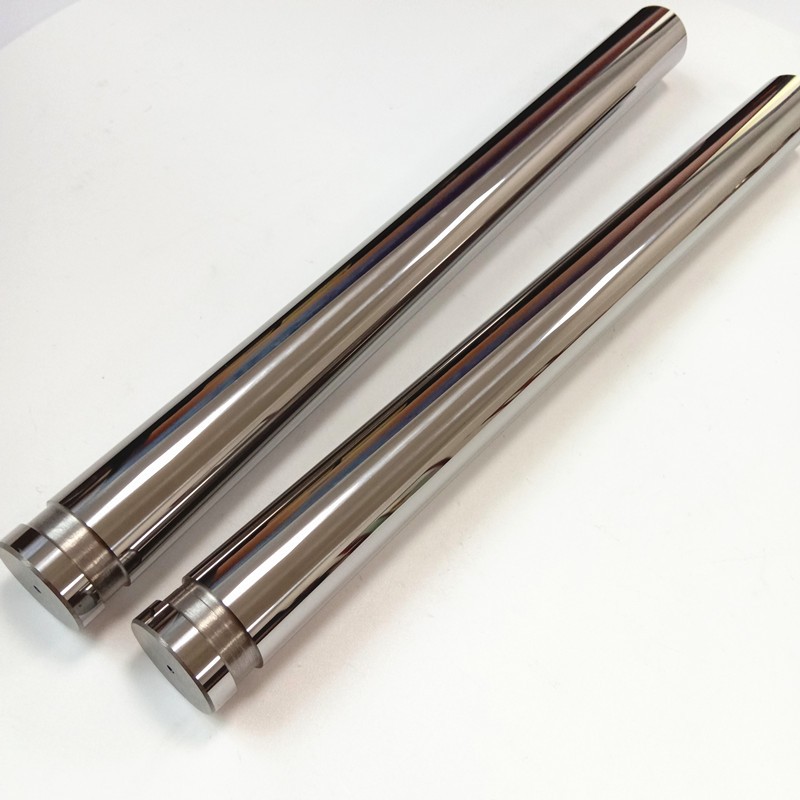

High Pressure Cleaning Pump Parts Solid Carbide Plunger With High Wear Resistance

With good wear resistant and a high polished finish for extreme pressure pumping of various fluids and gasses, our high pressure plungers will increase your pump’s internal life cycle.
We can also provide you with components precision ground to your exact specifications. Our carbide plunger has the most efficient centerless grinding and measurement system available. Our equipment consistently maintains0.0003 inch tolerance while sophisticated laser measurement technology guarantees parts are produced within strict control limits. Wherever wear is a problem, in mining, metal forming/production, gas and oil transmission, our products are providing solutions to costly wear problems.
Detail Information
1. Material: WC+Ni/WC+Co
2. Grade:YN8 YN11 YG11 YG8
3. Hardness: HRA89-90 Bending strength:3500
3. Size: Dia17*270mm Customized
4. Features: Wear Resistance, Corrosion Resistance
5. Surface finishing: Ra0.2-0.4
6. Straightness:0.005
7. Technology: HIP sintering
All technical data only for reference. We can make based on requirement
Application Range:
our tungsten carbide plunger widely used in high pressure pump, high pressure cleaning pump, High-power high-pressure pump group, High Pressure Pump Automatic Set,Pipe dredge, High-pressure oil injection machinery etc.
Grade
Density(g/cm3)
Hardness(HRA)
Toughness(N/mm2)
Composition
YG6
14.9
89.5
2150
Co 6%
YG8
14.6
89
2320
Co 8%
YG11
14.3
88
2500
11%Co
YN6
14.8-15
91
2100
Ni 6%
YN8
14.2
90.5
2300
Ni 8%
YN9
14.7
89.5
2200
Ni 9%
YN12
14.3
86.5
2250
Ni 12%

Our advantage:
1. Material: using high quality raw material
2. Production Procedure: Powder preparing- Pressing-HIP sintering- Processing-Finishing
3. Perfect quality control systerm: ISO9001:2015
4. Various dimension for choosing
5. Various grade for choosing based on your application. the hardness is from HRA82 to HRA92.5
6. We also accept manufacturing based on your drawing
7. We have professional technician team  and sales team, giving you professional suggestion

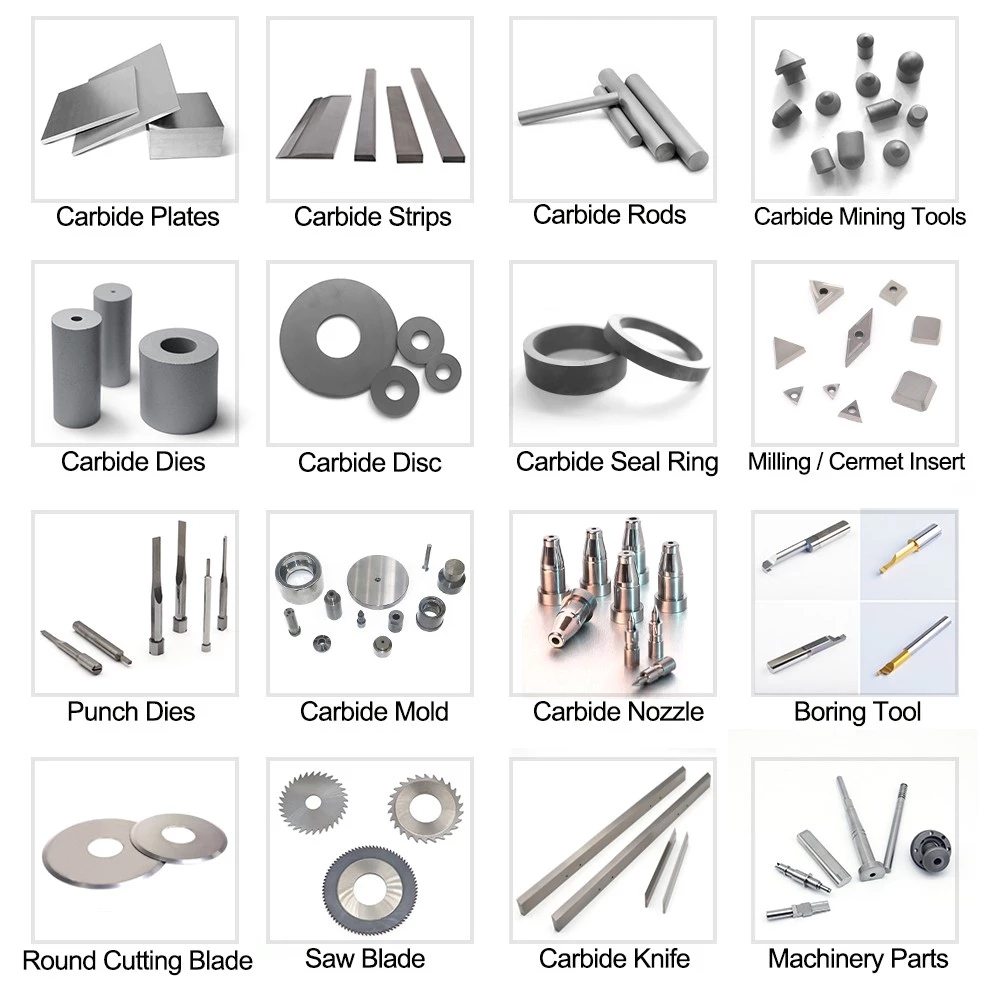

Our other Carbide Parts

1. Tungsten Carbide rod

2. Tungsten Carbide plate

3. Tungsten Carbide Seal Ring

4. Tungsten Carbide Nozzle

5. Tungsten Carbide Blade

6. Tungsten Carbide Tips

7. Tungsten Carbide Bush/ WearParts

8. Tungsten Carbide Dies
