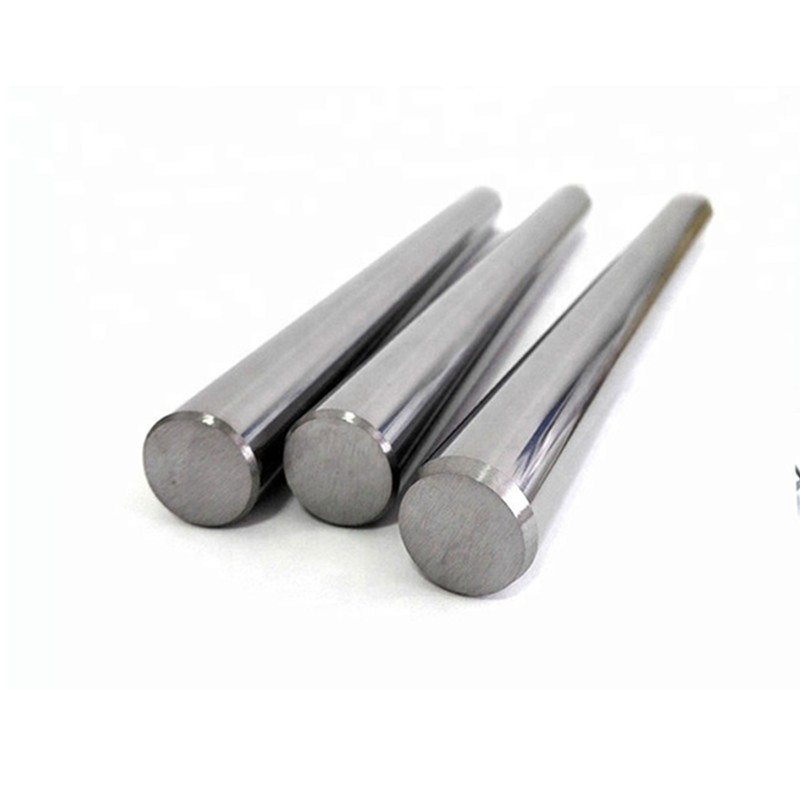

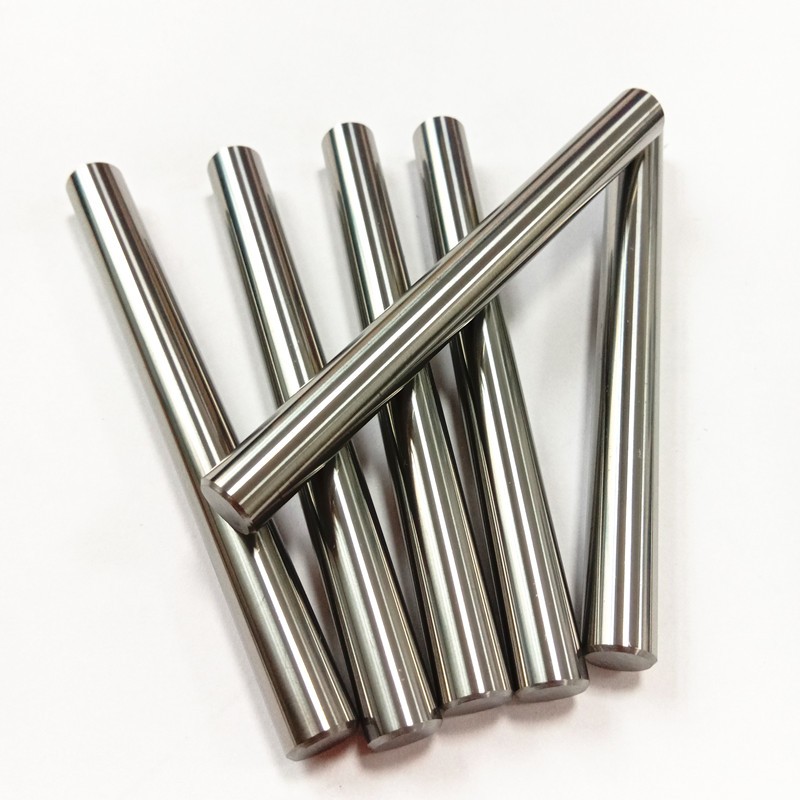

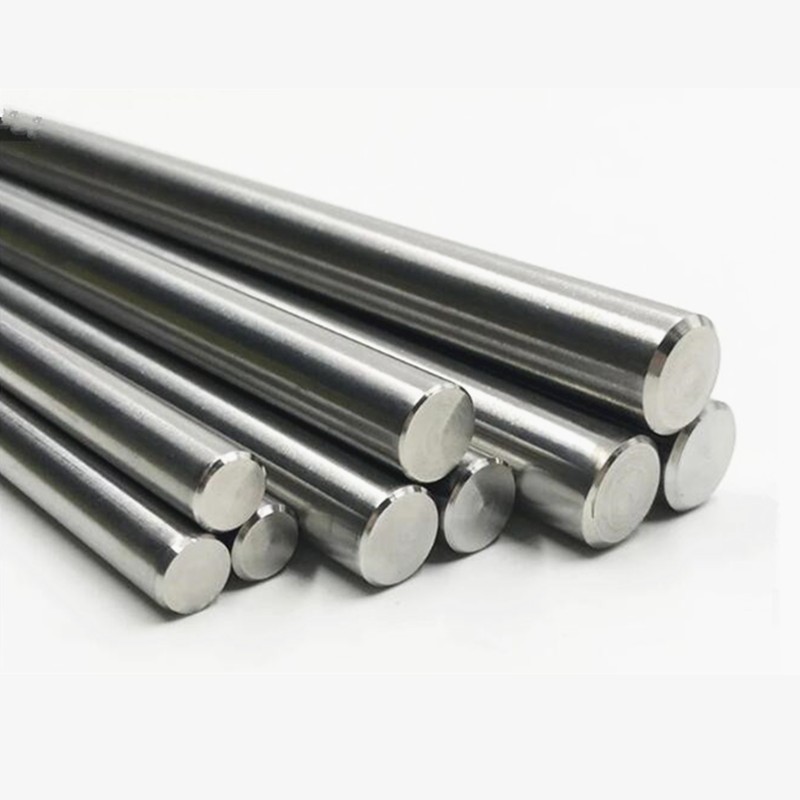

Ground Tungsten Carbide Rod

  • H6 H5 Ground Tungsten Carbide Rod / Round Bar YG10X YL10.2 With Chamfer
  • H6 H5 Ground Tungsten Carbide Rod / Round Bar YG10X YL10.2 With Chamfer
  • H6 H5 Ground Tungsten Carbide Rod / Round Bar YG10X YL10.2 With Chamfer
H6 H5 Ground Tungsten Carbide Rod / Round Bar YG10X YL10.2 With Chamfer H6 H5 Ground Tungsten Carbide Rod / Round Bar YG10X YL10.2 With Chamfer H6 H5 Ground Tungsten Carbide Rod / Round Bar YG10X YL10.2 With Chamfer

H6 H5 Ground Tungsten Carbide Rod / Round Bar YG10X YL10.2 With Chamfer

  • Place of Origin: Zhuzhou, Hunan
  • Brand Name: Zhenfang
  • Certification: ISO9001:2015
  • Grade: ZF-R362
  • Minimum Order Quantity:10 pcs
  • Price:negotiable
  • Delivery Time:3-10days
  • Payment Terms:L/C, D/A, D/P, T/T, Western Union
  • Supply Ability:15tons/month

For more information, warmly welcome to contat me at any time

Shirley Pan

Email:  shirley@chinahardalloy.com

Mobile:+8617773379950


H6 H5 Ground Tungsten Carbide Rod / Round Bar YG10X YL10.2 With Chamfer

Our standard size models:

GrindingBlank
DLDL
(mm)Tol.(mm)Tol.(+1mm)(mm)Tol.(mm)Tol.(+3mm)
2h63302.2+0.2330
3h63302.7+0.2330
3.175h63303.2+0.2330
4h63303.7+0.2330
5h63304.2+0.2330
6.35h63304.7+0.2330
7h63305.2+0.2330
8h63305.7+0.2330
9h63306.2+0.2330
10h63306.7+0.2330
11h63307.2+0.2330
12h63307.7+0.3330
12.7h63308.2+0.3330
13h63308.7+0.3330
14h63309.2+0.3330
15h63309.7+0.3330
16h633010.2+0.3330
17h633010.7+0.3330
18h633011.2+0.3330
19h633011.7+0.3330
20h633012.2+0.3330

For more size information, please kindly email or call us

We manufactured tungsten carbide rods extruded or pressed.

Diameter from 0.3mm to 35mm,

length in 310mm, 330mm or 340mm, or others

Grade in YL10.2,YG10X, YG6, YG8 etc.

Specification

Material:tungsten carbide WC+Co/Ni
Dimension:Dia30*75/100/150mm Dia2.0*330mm various size for choose
Ground Tolerance:h6 based on requirement
Blank tolerancce:+0.3~1.5mm
Grade:K20 K30 K10, YL10.2, YG20 YG10X
Production Process:Power mixing-Pressing-HIP sintering-Blank- Processing- Finished
Type: polished round rod
Surface:blank or grinding
PerformanceHigh hardness, wear /corrosion resistancce, good toughness, good straightness
Non-standard or tolerancecan be customized

Carbide Rod Grade Information

Carbide Rods Grades for Cutting Tools

Grade

ISO

Grade

WC%Co%

Grain Size

μm

Hardness

(HRA)

Density

g/cm3

T.R.S.

N/mm2

Application
YG6XK109460.6-0.814.9922000Suitable for processing Chilled cast iron, heat-resistant alloy steel, and fine process of common cast iron
YL10.2K25-K3590100.4-0.614.592.8-934800Wear resistance and strength comparatively higher,suitable for PCB micro drills,for making drills,end mill,reamer,taps,burrs etc.
Cutting steel class grade
GradeISO Grade

Density

g/cm3

Hardness

HRA

T.R.S

N/mm2

Application
YT5P3011.50-13.2090.01750Suitable for heavy duty cutting of steel and cast steel and for a low-speed and medium-speed and a big feed-rate roughing operation under unfavorable machining conditions
YT14P2011.20-11.8091.01550Suitable for semi-finishing and finishing machining of steel and cast steel, using a medium feed-rate
YT15P1011.10-11.6091.51500Suitable for semi-finishing and finishing machining of steel and cast steel and a medium feed-rate and a rather high cutting speed is to be recommended
YC40P4013.00-13.4089.51860Suitable for heavy duty cutting of steel and cast steel with a possible big feed-rate and for face milling as well.
YW1M1012.85-13.4092.01380Suitable for semi-finishing and finishing of stainless and ordinary alloyed steel
YW2M2012.65-13.3591.01680Suitable for semi-finishing and finishing of stainless and low alloyed steel, mainly used for machining of trains' wheel hubs
YW3M1012.85-13.1092.01420It is suitable for semi-finishing and finishing of stainless and ordinary alloyed steel

Application of tungsten carbide rod

Our tungsten carbide rod manufactured with high hardness and toughness, vibration-resistance, especially no stick when working.

It is widely used for making

- various kinds of carbide solid tools and cutting tools, such as drills, end mills, thread taps, rotating file,etc.

- A good material for general-purpose. Suitable for machining carbon steel, cast irons, stainless steel, heat-resistance steel, nickel based alloys and titanium alloys.

- Tungsten Carbide wear Parts

- Tungsten Carbide Mouldingdies

Production Features

- All carbide rods are made from the best tungsten carbide powders. The carbide rods are with submicron and average grain size ,the powder is even and stick together firmly,the purity of tungsten carbide powders is quite high.

- All carbide rods are made by the extrusion machine which insure that the inside structure of carbide rods is excellent and apprerance of carbide rods if better ,the flatness is improved a lot .

- All carbide rods are through HIP sintering which insure that the inside structure of carbide rods is free pore and can stick together firmly .Also the TRS is improved around 30% after HIP sintering.

- Large stock of regular sizes of carbide rods ,which can enable us to make the delivery within 24 hours.

- Replacement .we will replace the carbide rods for you if there is any defects.

Our tungsten Carbide Rod Type

blank tungsten carbide rod, ground carbide rod,  carbide rod with hole, fixed carbide rod, chamfered carbide rod

H6 H5 Ground Tungsten Carbide Rod / Round Bar YG10X YL10.2 With Chamfer(图1)

We manufactured and stocked a large range of dimensions unground and ground carbide rods for you, which guarantee our fast delivery.

We have a large range of grade for your choice.

We also can develop grade based on your application with fine&sub micron grain size .

We make tungsten carbide rods extruded or pressed.


For more detail size,pls email us,thanks
