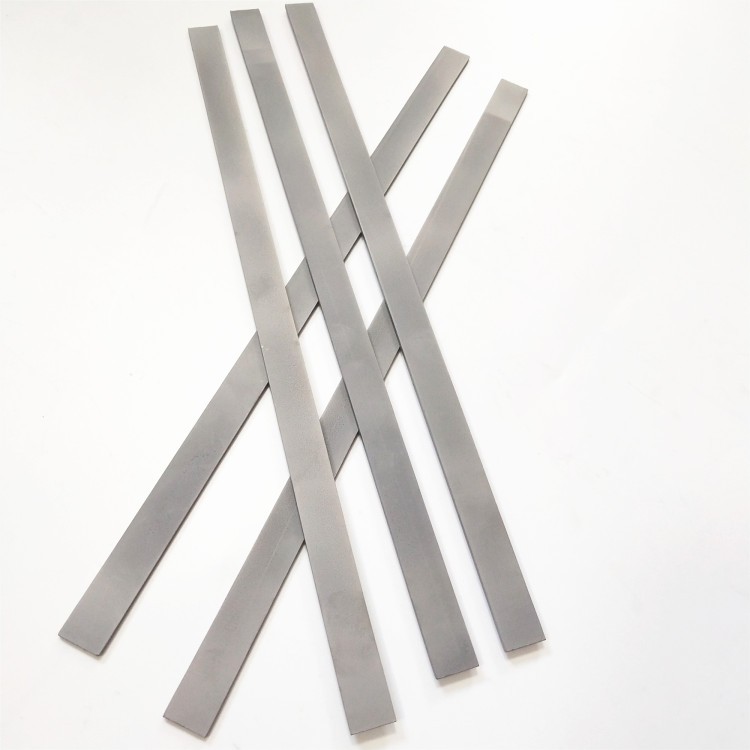

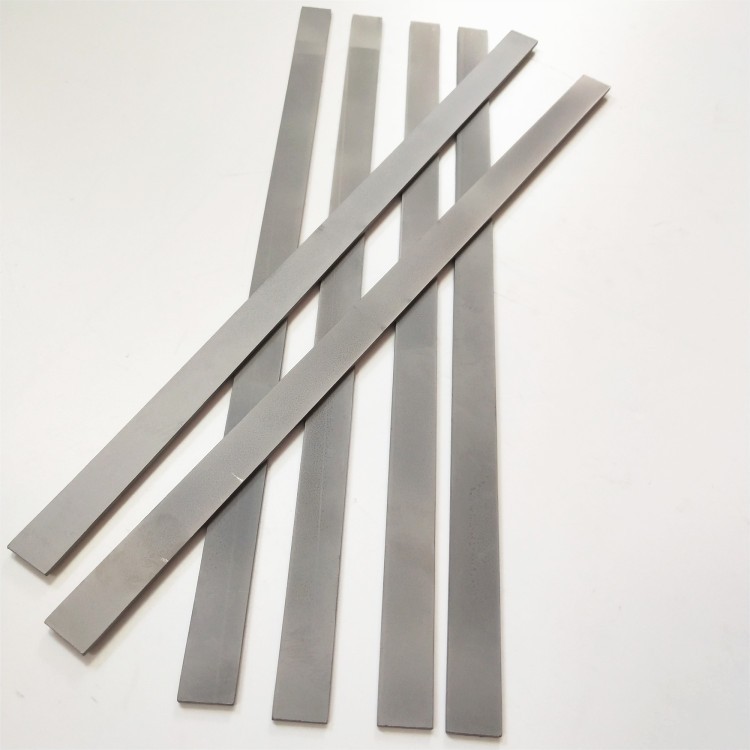

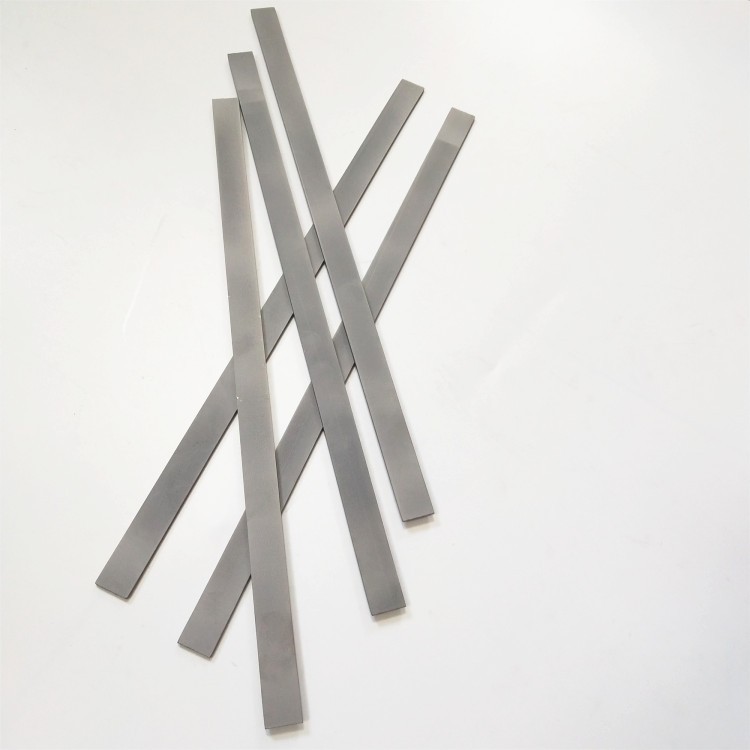

Custom Tungsten Carbide Parts

  • 15x4x330mm tungsten carbide flat bars / tungsten carbide plates, carbide square bars or strip
  • 15x4x330mm tungsten carbide flat bars / tungsten carbide plates, carbide square bars or strip
  • 15x4x330mm tungsten carbide flat bars / tungsten carbide plates, carbide square bars or strip
15x4x330mm tungsten carbide flat bars / tungsten carbide plates, carbide square bars or strip 15x4x330mm tungsten carbide flat bars / tungsten carbide plates, carbide square bars or strip 15x4x330mm tungsten carbide flat bars / tungsten carbide plates, carbide square bars or strip

15x4x330mm tungsten carbide flat bars / tungsten carbide plates, carbide square bars or strip

  • Place of Origin: China
  • Brand Name: Zhenfang
  • Certification: ISO9001:2015
  • Grade: K10,K20,K30
  • Minimum Order Quantity:100 pcs
  • Price:USD 45-58/kg
  • Delivery Time:7-15 days
  • Payment Terms:30% after confirming order the balance before shiping
  • Supply Ability:100000 pcs/month

15x4x330mm tungsten carbide flat bars / tungsten carbide plates, carbide square bars or strip

Tungsten carbide strips are made from 100% virgin raw materials. They’re square and rectangle shapes.

The Tungsten carbide flat Bars are used in wide application field. Theyre very good material to produce the parts to resist high temperature & corrosion, also widely used as wear parts, shielding parts, mold core, insert, special shape punch and so on, for cutting cast iron, nonferrous metals, plastics, chemical fiber, stainless steel and high Manganese steel, etc.

Various grades and sizes can be chosen.



Product Name
Tungsten carbide strips
Status
stress release,HIP treated
Product status
nickel white,tungsten black
Standard
OEM&ODM
Grade
YG6/YG8/YG15/K10/K20/K30/K40 as per request
Specification
Customized
Surface treatment
blank,ground,polished&as requirement
Feature
Hard hardness,wear resistance,corrosion resistance,toughness,shock resistance

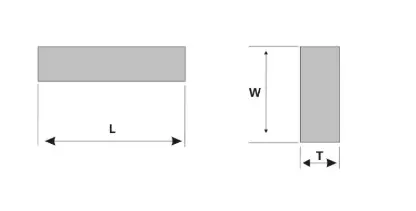

Size:

15x4x330mm tungsten carbide flat bars / tungsten carbide plates, carbide square bars or strip(图1)

Length(mm)

Width(mm)

Thickness(mm)

20-800

20-500

5-140



Recommanded grades for your reference
GradeISO RangeCobalt%

Density

g/cm3

Hardness

HRA

YG8K30814.889.5
YG6K30614.9590.5
YG6XK10614.9591.5
YL10.2K301014.591.8
YG15K40151487.5

Some size list:
LWT
20020010-45
15015010-45
15013010-45
Advantge of Our tungsten carbide plate
1. We are factory ,guarantee competitive price and high quality.

2. High density,Good machinability ,High modulus of elasticity ,Strong corrosion resistance,Good mechanical properties
3. It can effectively absorb X rays and gamma rays (the absorption of X rays andγ rays is higher than lead 30~40%)

4. 100% QC inspection Before Shipment.

5. We guarantee that all of our products are used with 100% Virgin Raw Material.

6. Customization is avaliable

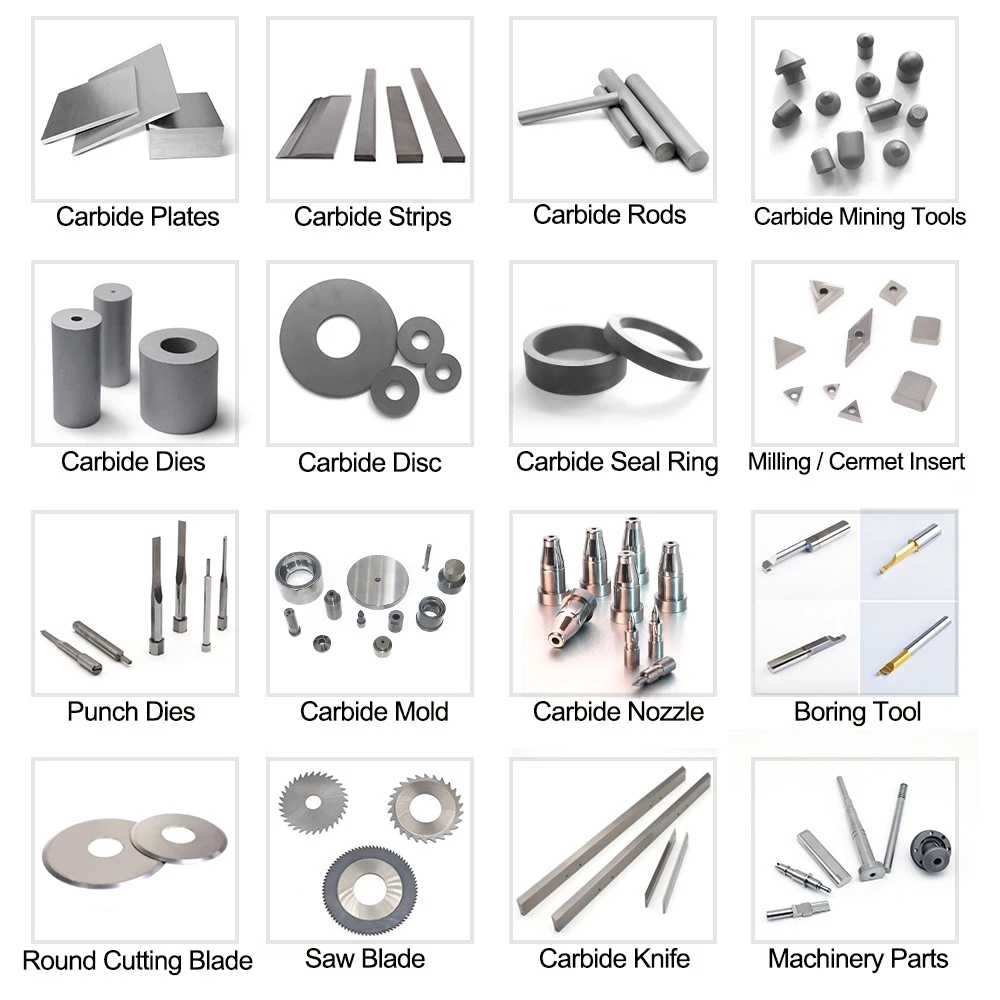

Our more Products
1. Tungsten Carbide rod
2. Tungsten Carbide Sealed Ring
3. Tugnsten Carbide Wear parts
4. Tugnsten Carbide Dies
5. Tungsten Carbide Non-standard parts

6. Tungsten Carbide Circular Blade

15x4x330mm tungsten carbide flat bars / tungsten carbide plates, carbide square bars or strip(图2)

Our Packing and shipment:
PackingOutside Carton or plywood case with inner plastic box.
ShippingUPS,TNT,EMS,Fedex,DHL,or by sea,as you request.


15x4x330mm tungsten carbide flat bars / tungsten carbide plates, carbide square bars or strip(图3)

Zhuzhou Zhenfang Yaguang Tungsten-Molybdenum Co.,LTD is a professional manufacturer in tungsten carbide field. We have engaged in this field for over ten years. We have rich experience on tungsten carbide studying and manufacture. We always pursuit providing efficient solution and high quality products for clients. We specialize in tungsten carbide rod, carbide plate&strips, carbide dies, carbide roller, carbide wear parts for petrochemical industry, carbide cutting tools. Tungsten carbide rod and customized wear parts is our advantage.

We always keep good relationship with our clients, enhancing communication and Cooperation to each other, trying to create WIN-WIN cooperation

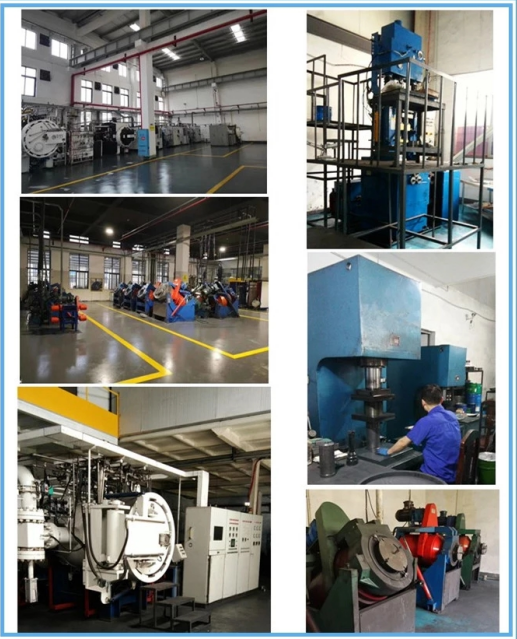

Product process and Equipment

15x4x330mm tungsten carbide flat bars / tungsten carbide plates, carbide square bars or strip(图4)


Our factory

15x4x330mm tungsten carbide flat bars / tungsten carbide plates, carbide square bars or strip(图5)


If have any more information,  please feel free to contact with me. And warmly welcome to visit our factory at any time.
