Custom Tungsten Carbide Parts

Cemented carbide cold heading dies,tungsten carbide cold punching mould

Cemented carbide cold heading dies,tungsten carbide cold punching mould

Place of Origin： China
Brand Name： Zhenfang
Certification： ISO9001:2015
Grade： YG11,YG15,YG16,YG20C,YG22C, YG25C,GT5
Minimum Order Quantity:1000 pcs
Price:USD 45-58/kg
Delivery Time:3-5 days
Payment Terms:30% after confirming order the balance before shiping
Supply Ability:100000 pcs/month

Cemented carbide cold heading dies,tungsten carbide cold punching mould

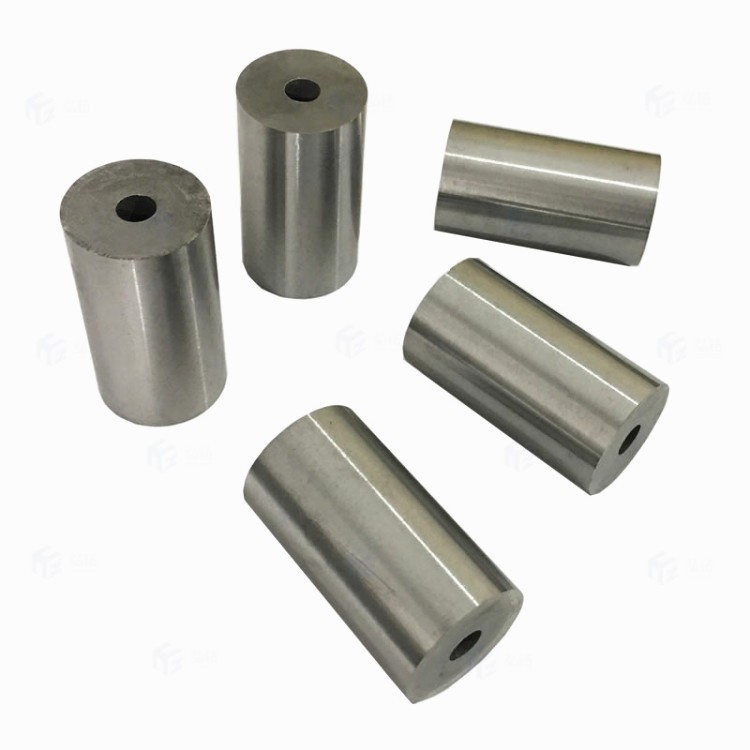

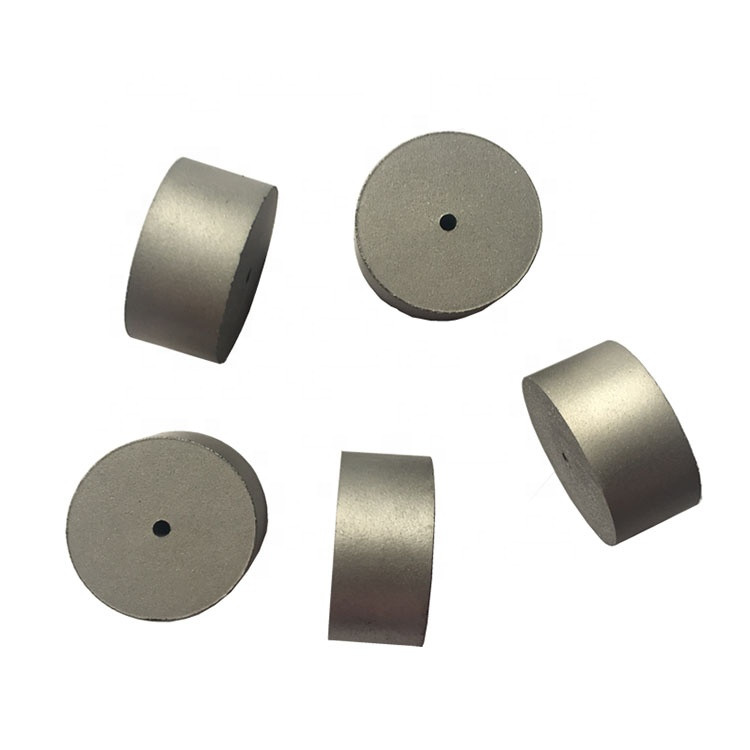

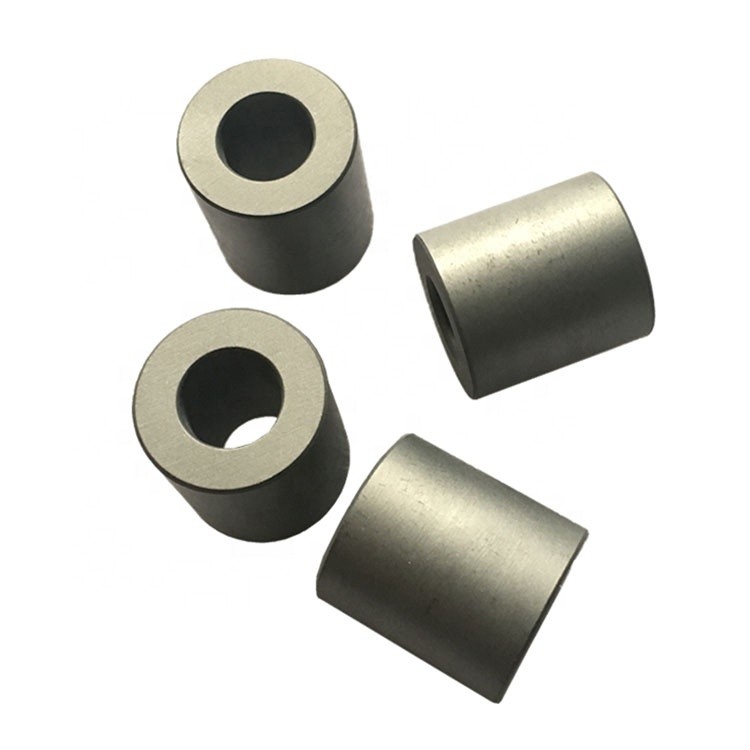

Cemented Tungsten Carbide Cold Heading Dies And Punches

Applications:

1. Fasteners

2. Nails

3. Rivets

4. Bearings

5. Auto components

Features:

Tungsten carbide cold heading die used for cold heading and cold punching standard parts,bearing, screws and nuts etc. With high impact resistance, toughness and wear resistance. Tungsten carbide cold heading/forming dies are manufactured to bear high and repeated stress. Tungsten carbide made possible the use of cold-forming/cold heading technology for mass production of high-volume parts like screws,bolts, rivets etc. The carbide grades of Apple Carbide ensure the exceptionally long tool life while delivering superior part accuracy.

Advantages:

1. Outstanding tool life and wear resistance.
2. Greatly improved dimensional consistency of the workpiece due to excellent transverse rupture strength and pressure resistance.
3. Uniform binder phase and content ensures substantially higher overall strength.

2. Material Grade List

Grade	ISO Code	Chemical Composition(%)		Physical Mechanical Properties (≥)			Application
		Chemical Composition(%)		Physical Mechanical Properties (≥)
		WC	Co	Density g/cm3	Hardness(HRA)	T.R.S N/mm2
		WC	Co	Density g/cm3	Hardness(HRA)	T.R.S N/mm2
YG3	K01	97	3	14.90	91.00	1180	Suitable for finishing of cast iron,non-ferrous metals,alloys and non-metallic materials,and semi-finishing vehicles for intermittent cutting.
YG6	K10	94	6	15.10	92.00	1420	Finishing of chilled hard alloy cast iron and heat resistant alloy steel and ordinary cast iron.
YG6X	K20	94	6	15.10	91.00	1600	Cast iron, non-ferrous metals and alloys, non-metallic materials, medium to cutting, semi-finishing and finishing.
YG8	K20-K30	92	8	14.90	90.00	1600	Suitable for casting of cast iron, non-ferrous metals and their alloys and non-metallic materials, roughing of sections and rough cutting.
YG10	K40	90	10	14.70	89.00	1900	Suitable for the production of drawing dies, wear parts and stamping parts and cores for hard alloy automatic presses.
YG10X	K40	89	10	14.70	89.50	2200	Suitable for small diameter micro drills, end mills, rotary boring tools, etc.
YG15	K30	85	15	14.70	87.00	2100	Forging, perforating and stamping tools for steel bars and steel tubes with high compression ratios and working under large stresses.
YG20	K30	80	20	13.70	85.50	2500	Stamping die, stamping watch parts, musical instrument spring piece.
YG20C	K40	80	20	13.70	82.00	2200	punching battery case, toothpaste skin mold, small size steel ball, screw, nut stamping die, hot rolling twist drill bit plate.
YG30	G60	70	30	12.80	82.00	2750	Production of standard parts, bearings, tools and other industries for cold heading, cold punching, cold pressing die.

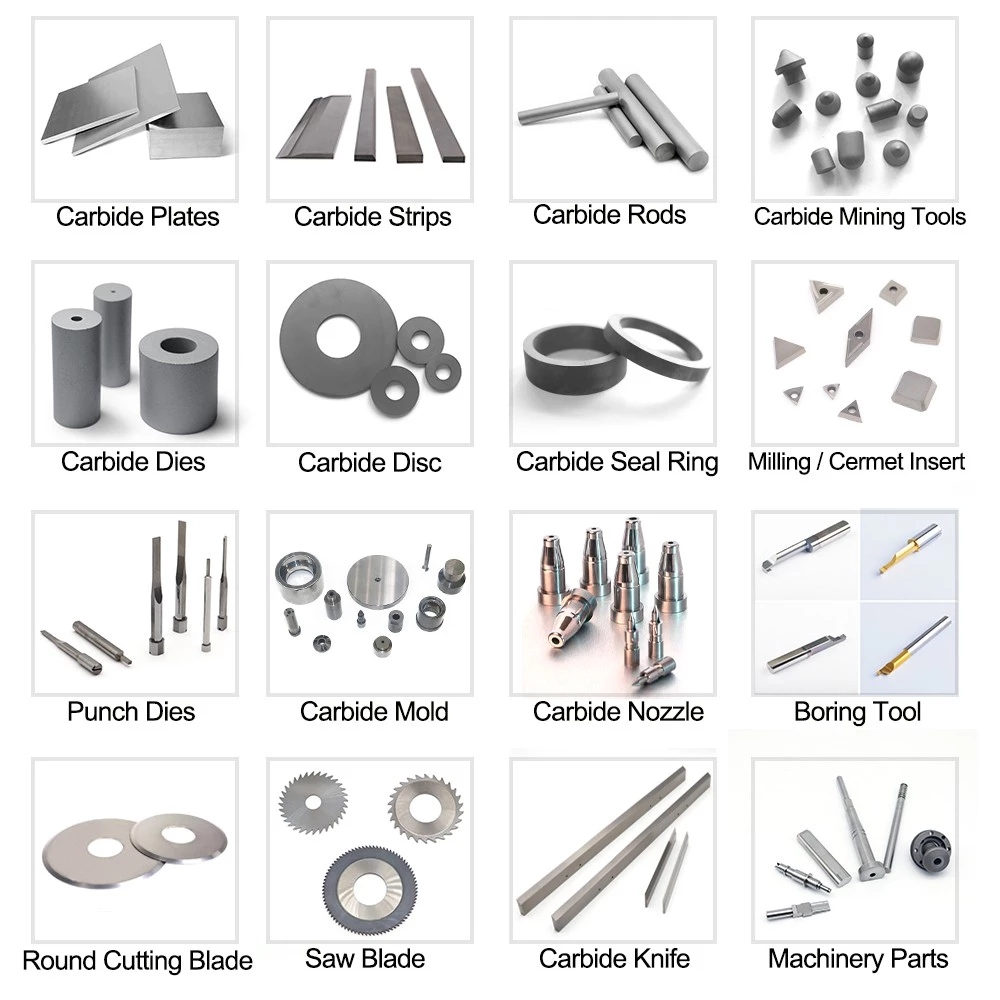

Our more products

1. Tungsten Carbide rod

2. Tungsten Carbide Sealed Ring

3. Tugnsten Carbide Wear parts

4. Tugnsten Carbide Dies

5. Tungsten Carbide Non-standard parts

6. Tungsten Carbide Circular Blade

Our Packing and shipment:

Packing	Outside Carton or plywood case with inner plastic box.
Shipping	UPS,TNT,EMS,Fedex,DHL,or by sea,as you reques

Our factory

Zhuzhou Zhenfang Yaguang Tungsten-Molybdenum Co.,LTD is a professional manufacture in tungsten carbide field. We have engaged in this field for over ten years. We have rich experience on tungsten carbide studying and manufacture.We pursuit providing efficient solution and high quality products for clients. We specialize in tungsten carbide rod, carbide plate&strips, carbide dies, carbide roller, carbide wear parts for petrochemical industry, carbide cutting tools.Tungsten carbide rod and customized wear parts is our advantage.
