Custom Tungsten Carbide Parts

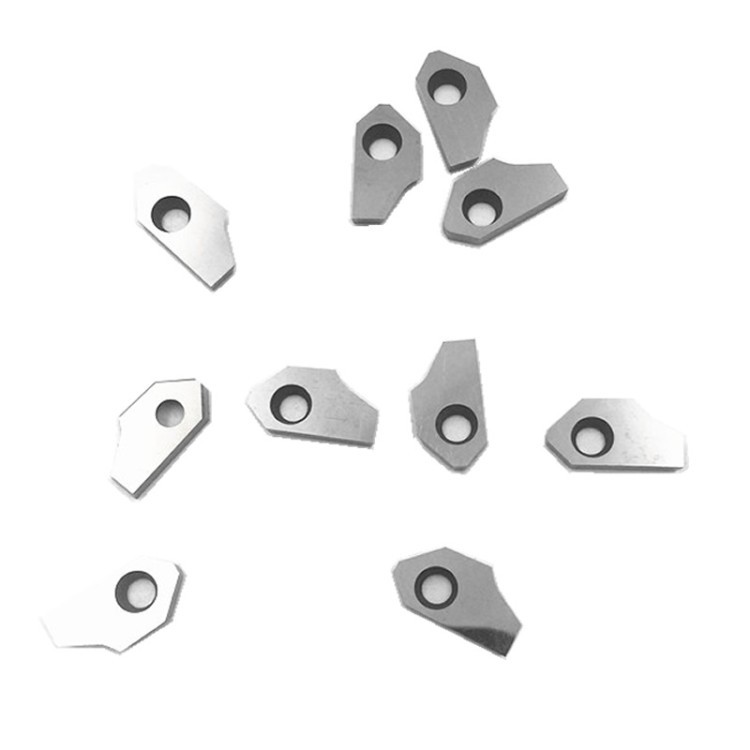

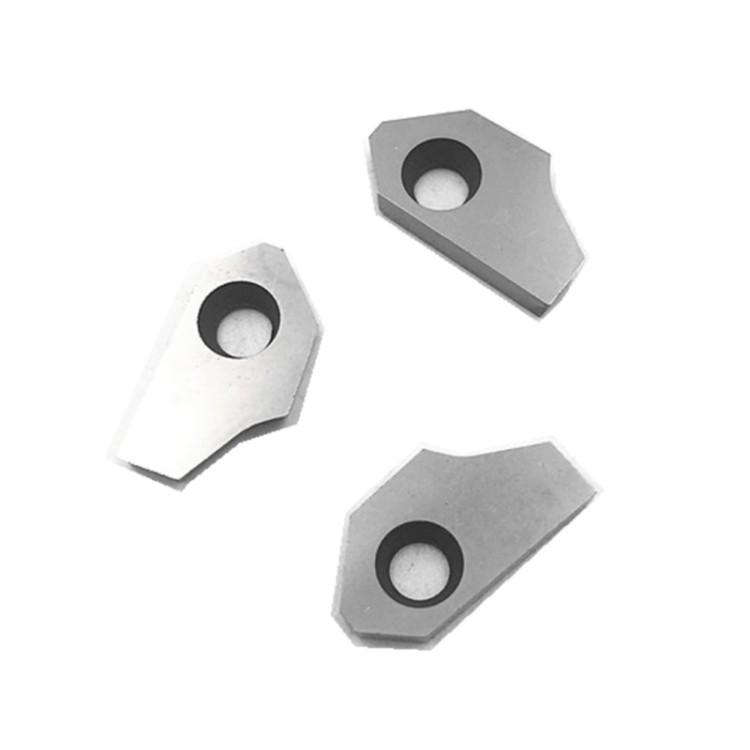

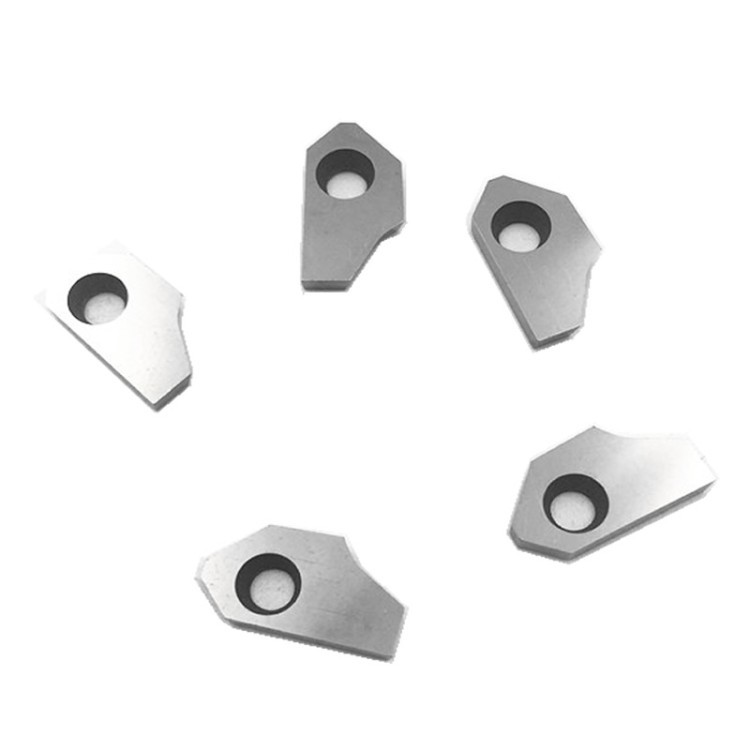

Tungsten Carbide Valve Seat Cutter carbide from zhuzhou factory

Tungsten Carbide Valve Seat Cutter carbide from zhuzhou factory

Place of Origin： China
Brand Name： Zhenfang
Certification： ISO9001:2015
Grade： ZF00118
Minimum Order Quantity:100 pcs
Price:USD 55-65/kg
Delivery Time:7-15 days
Payment Terms:30% after confirming order the balance before shiping
Supply Ability:100000 pcs/month

Tungsten Carbide Valve Seat Cutter carbide from zhuzhou factory

Features of Tungsten carbide valve seat

We are offering tungsten carbide valve seats for the application of wear in assembly of Gas Lift Valves, Wire Line Retrievable (WLR) Injection pressure operated (IPO) gas lift valves in Oil & Gas Ind. These are made to perfect sizes in controlled tolerances in order to fit during assembly.

Description tungsten carbide ball valve

1. High strength, high wear resistance, high precision, good temperature resistance and good corrosion resistance

2. Mainly used for the sealing of valves of oil pumps in petroleum industry's containing wells, viscous oil wells, sea oil wells and high pressure sulfur resistant oil wells

3. Precision machined cemented carbide balls of other grades and specifications are also available based on customers' demands

Application:

Tungsten Carbide Seats are used for various Oil Field Equipment and Oilfield Valves such as Conventional Gas Lift Valves, Wireline Retrivable (WLR) Injection Pressure Operated (IPO) Gas Lift Valves etc. Controlling fluid handling and flow control devices

Salient Features:

1.High wear resistance grade

2.Precise control on dimension

3.Last longer due to its special properties to suit application

Main Grade for Tungsten Carbide Valve Seat Cutter carbide from zhuzhou factory

Grade	WC%	CO%	Hardness (HRA)	Desnity (G/M³)	T.R.S (Mpa)	Metallographic analysis	Application
YG6	94%	6%	91	14.6-15.0	1700	A02B02C02	Widely used in all kinds of hardware industry, valve, bearing, die casting , punching, grinding measurement.
YG6X	94%	6%	92	14.6-15.0	1450	A02B02C02	Widely used in all kinds of hardware industry, valve, bearing, die casting , punching, grinding measurement.
YG8	92%	8%	89	14.4-14.8	1800	A02B02C02	Widely used in valves,bearing, die casting , punching, grinding measurement,hardness tester, petroleum, chemical industry, aeronautics and astronautics.

Our more products

1. Tungsten Carbide rod

2. Tungsten Carbide Sealed Ring

3. Tugnsten Carbide Wear parts

4. Tugnsten Carbide Dies

5. Tungsten Carbide Non-standard parts

6. Tungsten Carbide Circular Blade

Zhuzhou Zhenfang Yaguang Tungsten-Molybdenum Co.,LTD is a professional manufacture in tungsten carbide field. We have engaged in this field for over ten years. We have rich experience on tungsten carbide studying and manufacture.We pursuit providing efficient solution and high quality products for clients. We specialize in tungsten carbide rod, carbide plate&strips, carbide dies, carbide roller, carbide wear parts for petrochemical industry, carbide cutting tools.Tungsten carbide rod and customized wear parts is our advantage.
We always keep good relationship with our clients, enhancing communication

WC + CO Sintered Blank Tungsten Carbide Tube High Wear Resistance ISO Passed(图4)
