YL10.2 Custom Tungsten Carbide Pins Dia3.95*16.5 High Wear Resistance

YL10.2 Custom Tungsten Carbide Pins Dia3.95*16.5 High Wear Resistance

Place of Origin： Zhuzhou, Hunan
Brand Name： Zhenfang
Certification： ISO9001:2015
Grade： ZF-P821
Minimum Order Quantity:10 pcs
Price:negotiable
Delivery Time:3-18days
Payment Terms:L/C, D/A, D/P, T/T, Western Union
Supply Ability:15tons/month

For more information, warmly welcoem to contact me

Shirley Pan

Email: shirley@chinahardalloy.com

Mobile: +8617773379950(wechat/whatsapp)

Skype: zzzfcarbide

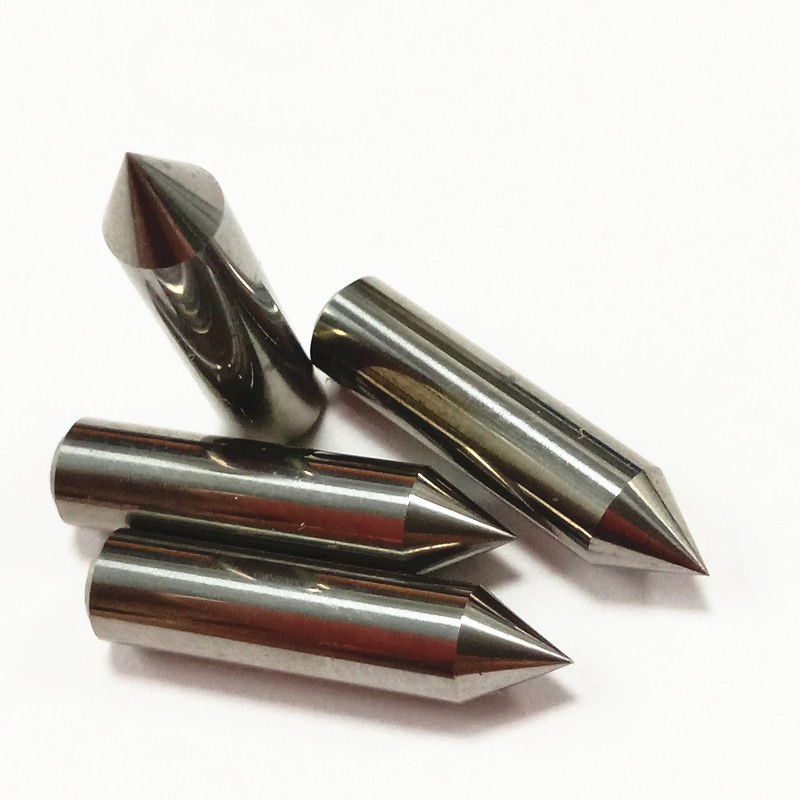

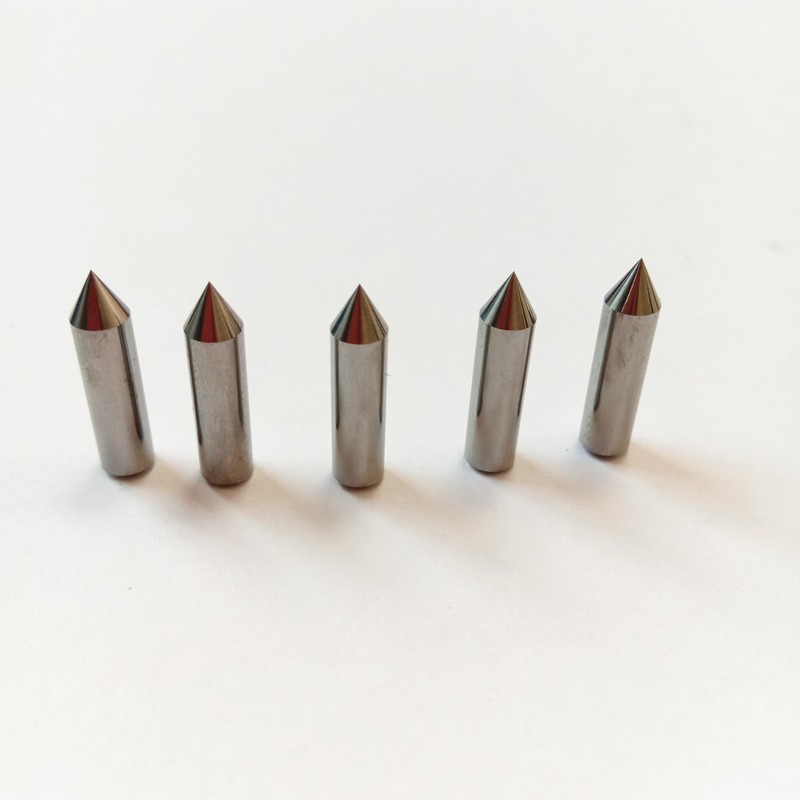

YL10.2 Custom Tungsten Carbide Pins Dia3.95*16.5 High Wear Resistance

Description and Application
Tungsten Carbide is often referred to as a Hard Metal due to it’s very high hardness in relation to other metals. Typically a Tungsten Carbide can have a hardness value of 1600 HV, whereas mild steel would be in the region of 160 HV a factor of 10 lower. Tungsten Carbide Rods are used for cutting aluminum alloy, cast iron, stainless steel, refractory alloy steel, nickel based alloy, titanium alloy and nonferrous metals. With several years’ development, with our good quality and competitive price, our products have been widely recognized by worldwide makers of cutting tools. We are looking forward to establish new business with new customers

Grade Information

a) Grade: YL10.2

b) Composition: 10% Co+90% WC

c) Density: 14.5g/cm3

d) Hardness: HRA 92.5

c) T.R.S.: 3800-4000N/cm2

e) Grain Size: 0.6-0.8μm

Products Specification:

Dimension:	Dia 1mm, 1.5mm, 2mm, 2.5mm, 3mm, 4mm, till 25mm with length 5mm, 8mm, 10mm, till 330mm, cut to length
Cutting amgles:	30°, 45°, 60°, 90°, 120°. Or Based On Requirement
Material:	100% virgin tungsten carbide steel
Grade	YL10.2
Hardness:	HRA92.5-92.8
Composition:	10%Co+90%WC
Grain Size:	0.6um
Surface:	unground
Features:	durable high pwear resistance Replaceable Very Sharp Point Create Fine Edge
Application:	Assembling On Tool Bit, Engraving or Scribing On Very Hard Items, For Example: Aluminum, Brass, Bronze, Metals, Steel, Glass, Ceramics, Hardwood, Etcs.

Common Size List

D(mm)	L(mm)	α
1.5	5	40°-90°
2	10	40°-90°
2.5	10	40°-90°
3	18	340°-90°
3	10	40°-90°
3.5	10	40°-90°
4	20	40°-90°

Other size can be customized

Application of tungsten carbide pin/neddle
Assembling On Tool Bit, Engraving or Scribing On Very Hard Items, For Example: Aluminum, Brass, Bronze, Metals, Steel, Glass, Ceramics, Hardwood, Etcs.

Our advantage of tungsten carbide pin
* ISO 9001:2015 Certification
* Use 100% tungsten carbide raw material
* Advanced technology , automatic pressing , HIP sintering
* with over ten year experience
* And precision grinding
* the tolerance of polish and ground can be +0.005/-0.005mm
* Full ability to accept OEM & ODM orders
* Stringent quality control and quality consistency.
* Strict inspection for quality of raw material and finished products
We Guarantee:
1. produced with advanced equipments and process.
2. high quality durable tungsten carbide rod blanks/cemented rods for milling for router bits made from 100% virgin raw material.
3. all products go through in-process and final inspection.
4. Quality Control System and strict inspection.
5. stable and continuous production ability.
6. free online technical service available.
7. OEM and ODM are accepted as well.
8. Our solid carbide rods are known for constantly providing maximum quality. You can rely on our products as a basis for
consistent performance capacity of your tools.
9. Undertake orders of non-standard sizes at customer's requests.
We can offer a lot of type tungsten carbide rods:
1. un-gound, finish-ground in metric and imperial diameters;
2. Carbide rods with central coolant duct;
3. Fixed length Carbide Rod
4. Random Length carbide rod
5. Carbide rods with chamfered end.
