Cemented Carbide Rods

High Hardness Cemented Carbide Rods , Solid Carbide Bar Dia0.7*100mm

Place of Origin： Zhuzhou, Hunan
Brand Name： Zhenfang
Certification： ISO9001:2015
Grade： ZF-R458
Minimum Order Quantity:10 pcs
Price:negotiable
Delivery Time:3-10days
Payment Terms:L/C, D/A, D/P, T/T, Western Union
Supply Ability:15tons/month

For more information, please contact

Contact Person: Shirley Pan

Email:shirley@chinahardalloy.com

Mobile: +86 17773379950(wechat/whatsapp)

Skype: zzzfcarbide

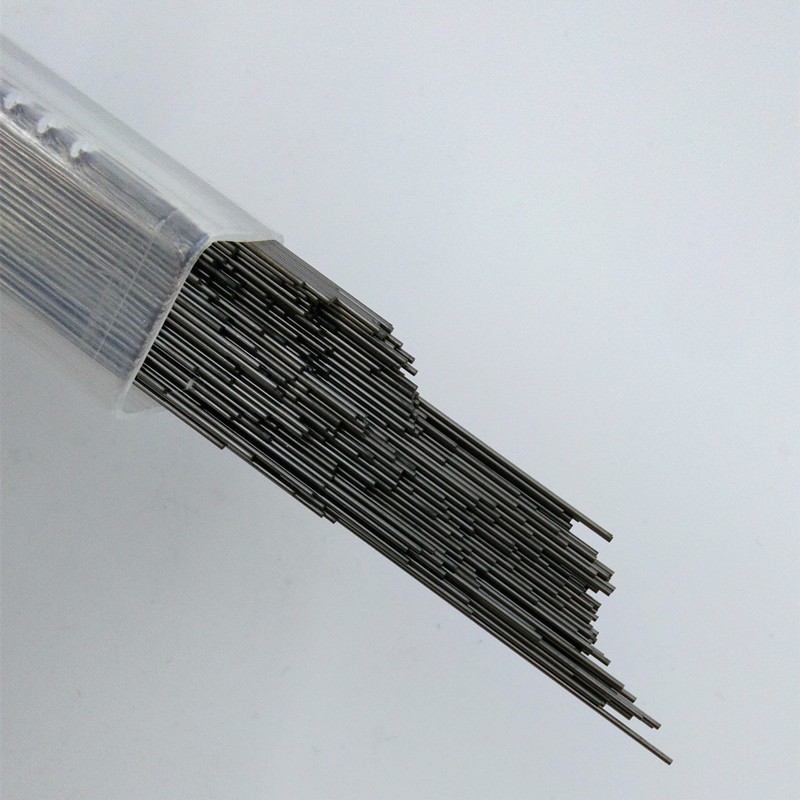

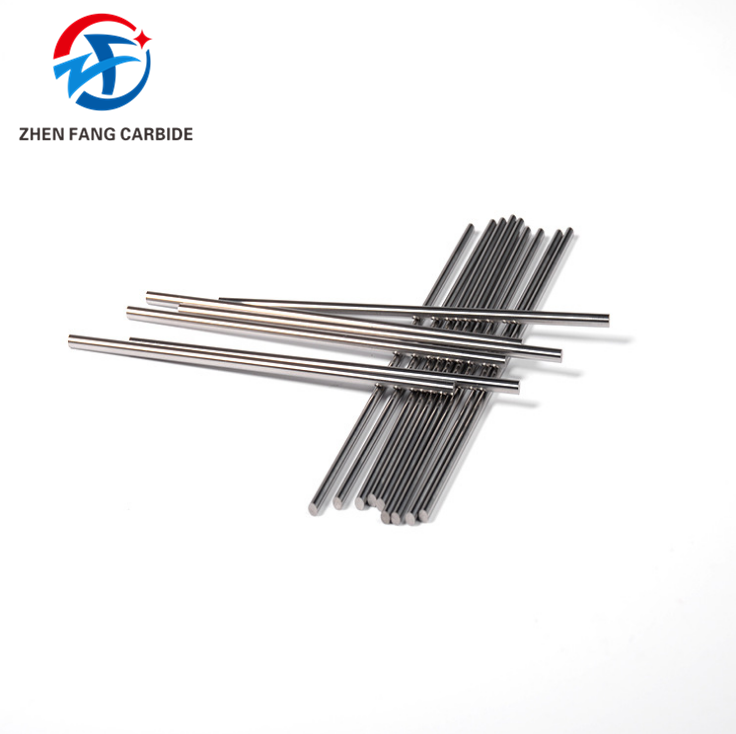

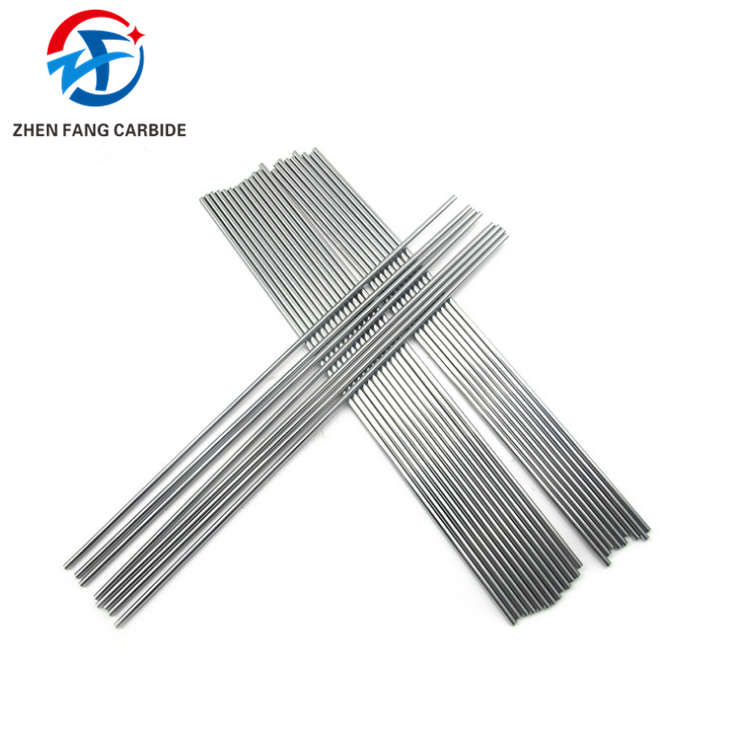

Dia0.7*100mm cemented carbide rod, solid carbide bar with high hardness

Detail Introduction

Material:	100% virgin WC+Co
Grade:	YL10.2( 10% Co)
Dimension	Dia0.7100mm (various size for Choosing)
Properties:	High Hardness and toughness
Grain Size:	0.6μm
Hardness:	HRA92
Production Process:	Powder Preparing-Pressing-HIP sintering-processing-finishing
Surface:	Polishing
Application:	cutting tools

We manufacture ground and unground carbide rods in stock with HIP sintered and 100% virgin material.Our recommend grade for machining carbon steel to aluminum , non-ferrous metals and titanium. which cutting tool material HRC<=55. with 10% cobalt, grain size 0.8um, TRS>=3800. The stability and high performance of the series bring many benefits to our clients.

Standard size list for reference

Size range(DiaXL mm)	Tolerance
Size range(DiaXL mm)	D(blank, mm)	D (ground, mm)	L(mm)
Dia(1-5)xL30-330mm	+0.3/+0.4	h6/h7	0/+2
Dia(6-20)xL30-330mm	+0.3/+0.6	h6/h7	0/+2
Dia(21-40)xL30-330mm	+0.5/1.0	h6/h7	0/+3

We offer:

1. molded and extruded solide carbide rod with surface unground,ground and polished

2. chamfered and without chamfer carbide rod

3. ODM and OEM service

4. Special dimension and chemical composition is also available for us

Some grade information for reference

Grade	Desity (g/cm3)	Hardness (HRA)	T.R.S (MPa)	Grain Size (μm)	Composition(%)	ISO
YL10.2	14.4-14.6	>92	4000	0.6-0.8	10%Co 90%WC	K25-K35
YG10X	14.5-14.6	>91.8	3500	0.6-0.8	10%Co 90%WC	K35
YG6X	14.85-15	>92	1860	0.6-0.8	6%Co 94%WC	K10
YG8	14.65-14.85	>89.5	2320	0.8-1.2	8%Co 92%WC	K20
YG6	14.85-15	>90	2150	0.8-1.2	6%Co 94%WC	K10
YS2T	14.4-14.6	>92.5	2400	0.6-0.8	10%Co 90%WC	K30

Other grade and dimension are also available for choosing based your specific application

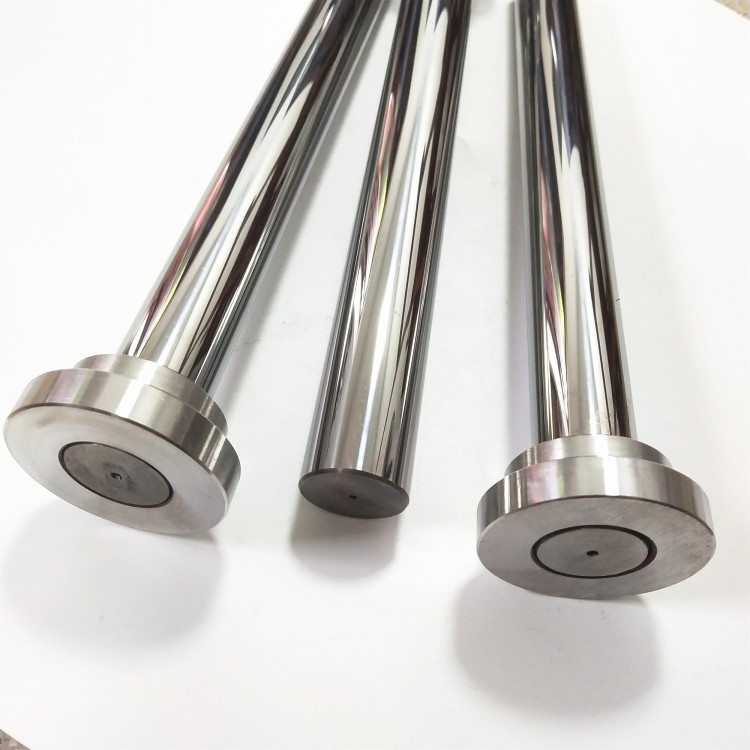

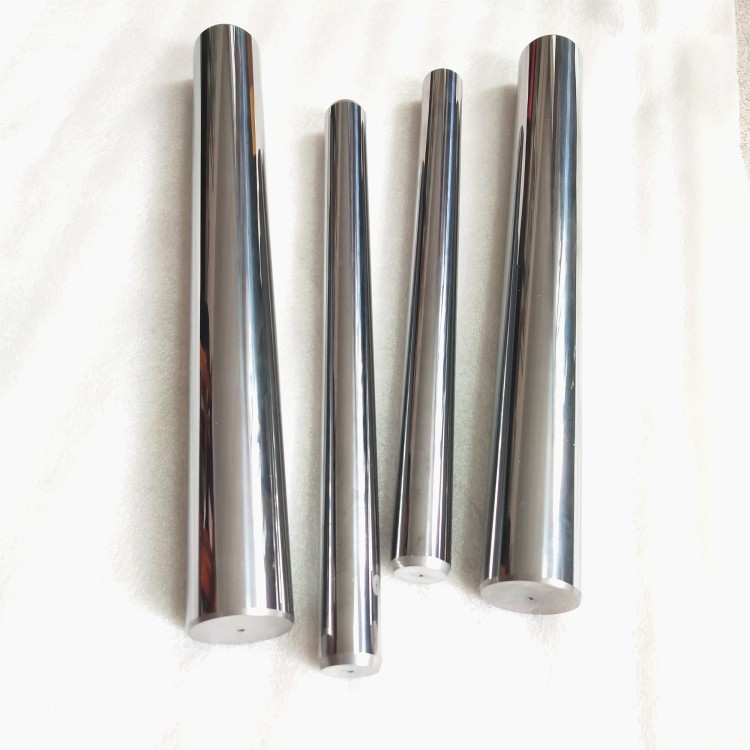

Other type tungsten carbide round bar

1. tungsten carbide blank rod

2. tugnsten carbide rod with one small single hole

3. short length carbide rod

4. custom non standard carbide rod

Application Area:

1. Mining: drill bits, reamer end mills,remaers,countersinks,engraving tools,routers and other rotary tools.

2. stamping and measuring tools

3. Cutting tools for machining: Milling cutter,

4. Sports Usage: Trekking poles, Car, motorcycle and bicycle tires with tungsten carbide studs

5. Surgical instruments

Our Advantages:

1. Professional manufacturer for tungsten carbide rod with more than 10 years' experience.
2. Using100% virgin raw material guaranteed products quality
3. Advanced production equipment/test equipment (With HIP sintering)
4. compititive price and fast delivery
5. products with high performance:high wear-resistance ,toughness and corrosion resistance
6. customization is avaliable

7. Perfect quality control systerm: ISO9001:2015

8. We have professional technician team and sales team, giving you professional suggestion
