Carbide Wear Parts

  • high wear resistance tungsten carbide ball
  • high wear resistance tungsten carbide ball
  • high wear resistance tungsten carbide ball
  • high wear resistance tungsten carbide ball
high wear resistance tungsten carbide ball high wear resistance tungsten carbide ball high wear resistance tungsten carbide ball high wear resistance tungsten carbide ball

high wear resistance tungsten carbide ball

  • Place of Origin: Zhuzhou, Hunan
  • Brand Name: Zhenfang
  • Certification: ISO9001:2015
  • Grade: YG6 YG8 YG6X...
  • Minimum Order Quantity:10 pcs
  • Price:Negotiable
  • Delivery Time:3-15days
  • Payment Terms:L/C, D/A, D/P, T/T, Western Union
  • Supply Ability:15tons/month
Features of tungsten carbide ball
the unground ball is suitable for milling all kinds materials;
the grinding and polishing ball is suitble for precision punching member stretched, precision bearings,instruments,meters,Pen, spraying machines,pumps,machinery parts,valve seals,brake pump,squeeze-hole punch, oil,hydrochloric acid laboratory,hardness measuring instrument,fishing gear,with heavy,ornamented,finished,the high-end industry!

1.For sealing of valves of oil pumps in petroleum industry's sand containing wells,
viscous oil wells, sea oil wells, high pressure sulfur resistant oil wells, compatible
Cemented Carbide valve seats, etc.
2.Various grades for cemented carbide balls/pellets can be supplied according to
customer's drawings.
3.The surface finish, tolerance class and tolerances of dimensions have respectively reached the standards of the machine industry
Application:
Tungsten carbide ball was widely used in precision tools drawing and punching,high precision bearings,high precision measuring
instrument and appratus,water pump and brake pump,and various machinery sealing accessories part in high-tech industry.

Diameter:
Dia. 2, 5, 7, 8, 10, 12mm (or 5/8, 3/4, 15/16, 1-1/8, 1-1/4, 1-3/8, 1-1/16, 2-1/4") and more.
Specification: The size of range is available from 3/32" to 2" inches, the tolerance grade is divided into G10, G25, G48, G50, G100 and so on. The available grades and sizes are shown in the below table.

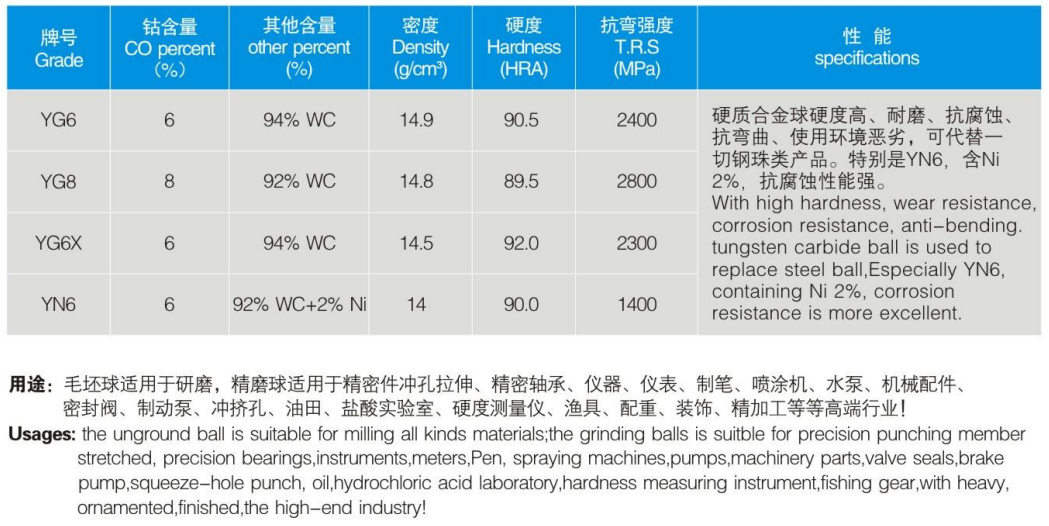

GradeSpecification
Grade
Density(g/cm3)
Hardness(HRA)
T.R.S(MPa)
Composition
YG6
14.85
90
2150
6%Co+94%WC
YG8
14.8
89.5
2320
8%Co+92%WC
YG6X
14.85
92
WC1900
6%Co+94%WC
YG10X
14.6
91.5
3000
10%Co+90%WC

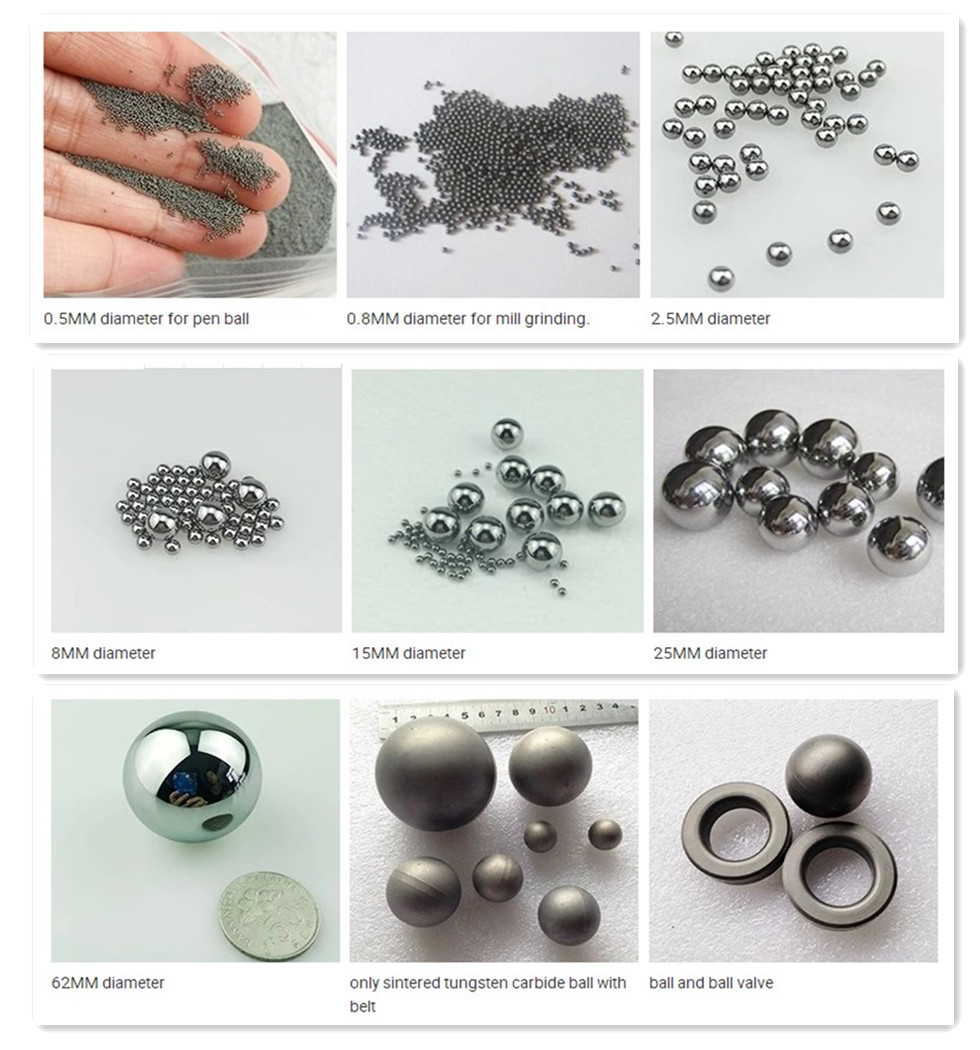

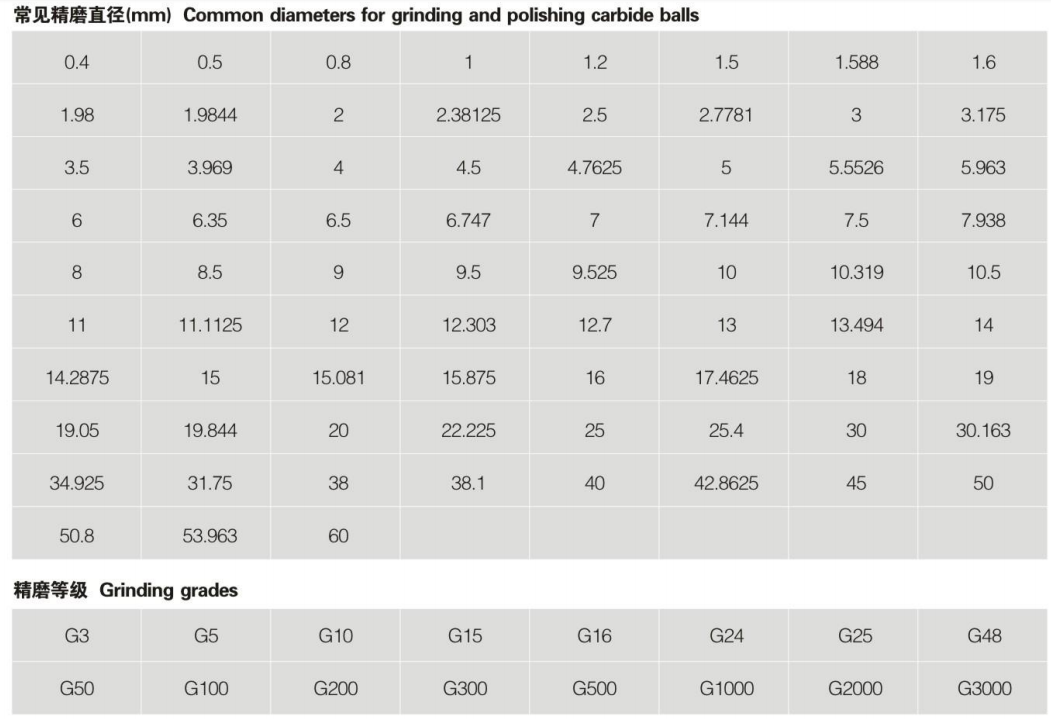

Ball size for choosing
0.4
0.5
0.8
1.0
2.0
3.0
4.0
5.0
6.0
7.0
8.0
9.0
10.0
11.0
12.0
13.0
14.0
15.0
16.0
17.0
18.0
19.0
20.0
21.0
22.0
23.0
24.0
25.0
26.0
27.0
..........
30.0-40.0
50-60
60-70
70-80
.........




we have more than 100 kinds of diameter for your choose,other diameters pls chat with sellers
